Function of shift lock override - GF27.10-P-3023CWQ
TRANSMISSION 722.9 in MODEL 204.0 up to Model Year 8

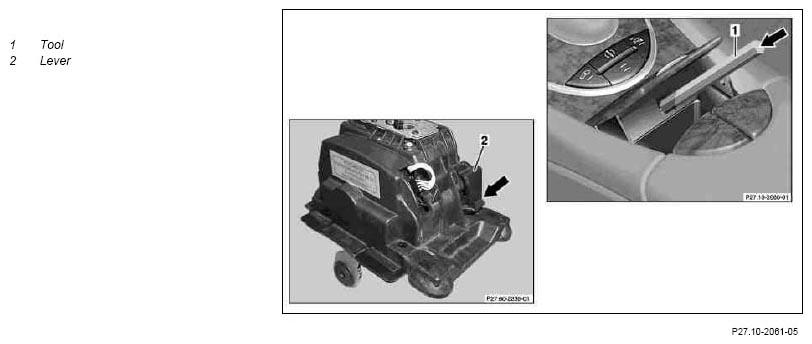

Schematic representation
If it is not possible to engage a drive position from selector lever position "P" due to a mechanical, electrical or electronic fault, the selector lever position "P" lock can be released using the shift lock override function.
To do this, the stowage compartment in the center console must be unclipped and a suitable tool (1) must be pressed onto the lever (2) through the guide underneath (arrow). The selector lever position "P" lock is released via a bolt in the lock solenoid valve. The selector lever can be shifted through simultaneous actuation of the lever (2) and selector lever from selector lever position "P".
| R/P-lockout, component description | GF27.60-P-5161CW | ||
| Park pawl component description | GF27.60-P-2010GZ | ||
| Shift detent, component description | GF27.60-P-5162CW |
