Shift detent, component description - GF27.60-P-5162CW

TRANSMISSION 722.6/9 in MODEL 204.0 up to Model Year 8

Schematic representation

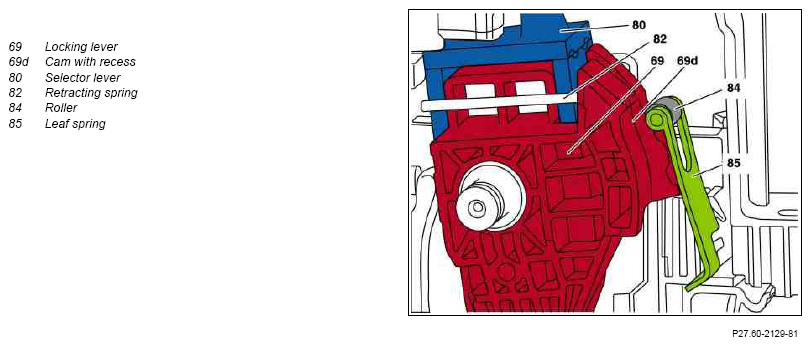

Fig 1: Identifying Shift Detent Components

Courtesy of MERCEDES-BENZ USA

Location

The shift detent is integrated in the electronic selector lever module control unit.

Task

Fix the selector lever positions "R", "N" and "D".

Design

The shift detent consists of the locking lever rigidly connected to the locking lever, a leaf spring clamped into the basic body and a roller inserted into the leaf spring.

Setup, schematic representation

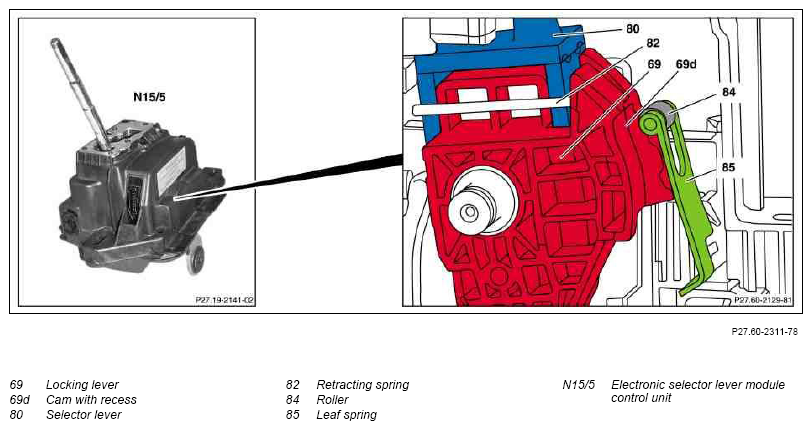

Fig 2: Identifying Shift Detent Components Schematic Representation

Courtesy of MERCEDES-BENZ USA

Function

When the selector lever is moved into one of the selector lever positions "R", "N" and "D" the roller engages in the cam with recess. The selector lever is locked to prevent longitudinal movement. It can now only still be shifted out of the respective selector lever position against the force of the leaf spring.

The transverse movement into selector lever position "D" (touch shift towards "+" and "-") continues to be possible. The selector lever is freely movable in this direction. Once the touch shift has occurred the retracting spring presses the selector lever back into the starting position.
