Remove/install left front or right RPM sensor - AR42.30-P-0712CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204
Shown on model 204
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove left or right front wheel | Model 204 | AP40.10-P-4050CW |

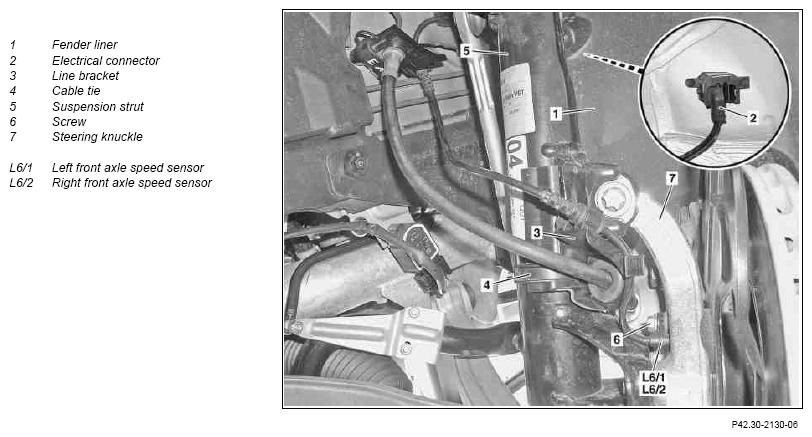

| 3 | Remove rear section of fender liner (1) in front fender | Model 204 | |
| 4 | Disconnect electrical connector (2) on front axle electrical distributor | Model 204 | AR33.10-P-0100-06CW |
| 5 | Unclip electrical line of the left front axle RPM sensor (L6/1) and the right front axle RPM sensor (L6/2) on line bracket (3) | ||
| 6 | Remove cable tie (4) from suspension strut (5) | Except model 204 with engine 156, except model 204.9 |
|
| Fig 2 | |||
| 7 | Remove bolt (6) and pull left front axle RPM sensor (L6/1) and right front axle RPM sensor (L6/2) out of steering knuckle (7) | ||
| 8 | Install in the reverse order | ||
| 9 | Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
