Detach, connect front axle electrical distributor connector - AR33.10-P-0100-06CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

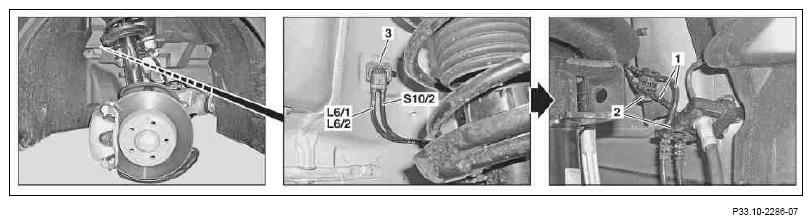

Fig 1: Identifying Front Axle Electrical Distributor Connectors

Courtesy of MERCEDES-BENZ USA

Shown on model 204 with steel suspension

Press spring latch (3) on front axle electrical distributor downwards and pull left front-axle RPM sensor connector (L6/1) or right front-axle RPM sensor connector (L6/2) and right front brake wear sensor connector (S10/2) out of the front axle electrical distributor.
The right front brake wear sensor connector (S10/2) is only fitted to the front axle electrical distributor on the right side of the vehicle.

For model 212 with code (489) AIRmatic (air suspension with continuous damper adjustment) or code (488) Steel/air suspension and for model 207 with code (483) ADVANCED AGILITY package: The lines for the right front brake wear sensor (S10/2) and the right front axle damping valve unit are combined to form a single line on the right.

The left front axle damping valve unit line is plugged onto the left front axle electrical distributor connector.
Unclip electrical feed lines (1) from line holders (2) and place to one side.
