Completely replace inner C-pillar side wall - AR63.10-P-0700CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0

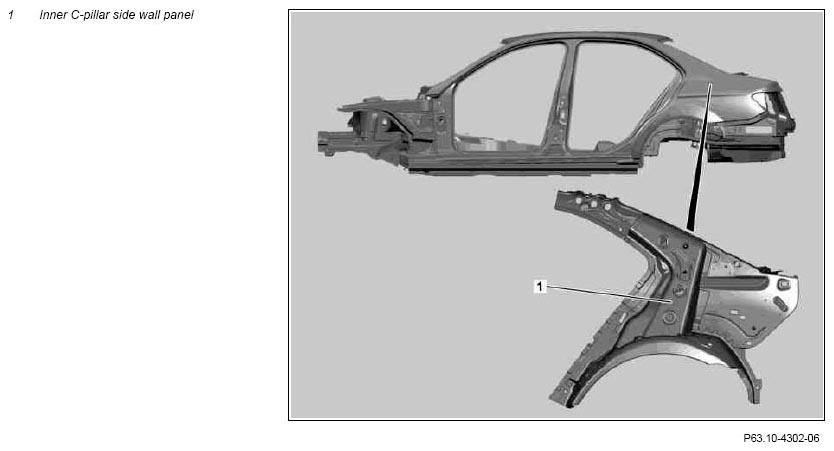

Fig 1: Identifying Inner C-Pillar Side Wall Panel
G07069810Courtesy of MERCEDES-BENZ USA
REMOVING Removing
DANGER Risk of death  caused by high voltage used for electric welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding spatter and UV light while welding. Risk of poisoning  caused by inhaling welding fumes. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of poisoning  caused by inhaling vapors or swallowing adhesive. Risk of injury  caused by adhesive coming into contact with skin and eyes Wear respiratory protection, protective gloves and safety glasses. Pour adhesive into suitable and appropriately marked containers only. AS00.00-Z-0016-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES Measures for preventing damage to vehicles or components when performing electric welding work   AH00.00-N-0005-01A
NOTES General information on repairs to body   AH60.00-N-0001-01A
NOTES Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
NOTES Notes on paintwork repairs   AH98.00-P-9408-02A
IMPORTANT General information on riveting   AH60.00-P-0003-01N
IMPORTANT General information on MB materials   AH98.00-P-9409-03A
1 Prepare required workshop equipment and commercially available tools for repair
2 Remove all detachable body components in area to be repaired. IMPORTANT When replacing right inner C-pillar side wall (1), remove fuel tank.
3 Cover all detachable parts remaining vehicle with fireproof tarpaulin
4 Equip straightening bench with module members, cross members and straightening bracket set. IMPORTANT Observe body plans provided.
5 Lift vehicle with two-column lifting platform
6 Set vehicle onto straightening bench
7 Fasten vehicle to straightening bench
8 Remove rear fender   AR63.50-P-1400CW
9 Remove inner C-pillar side wall (1)   AR63.10-P-0700-01CW
SPECIAL TOOL Spot weld milling cutter Figure
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
10 Prepare inner C-pillar side wall (1) for installation   AR63.10-P-0700-02CW
SPECIAL TOOL Spot weld milling cutter Figure
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
11 Set up side portal frame with inspection and welding device IMPORTANT Observe body plans provided.
SPECIAL TOOL Side portal frame Figure
SPECIAL TOOL Inspection and welding device Fig 4
12 Install and weld in inner C-pillar side wall (1)   AR63.10-P-0700-03CW
SPECIAL TOOL Side portal frame Figure
SPECIAL TOOL Inspection and welding device Fig 4
Adhesive *BR00.45-Z-1092-02A
Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
Rivet *BR00.45-Z-1001-13A
Rivet *BR00.45-Z-1012-13A
13 Install rear fender   AR63.50-P-1400CW
14 Unfasten vehicle from straightening bench
15 Lift vehicle with two-column lifting platform
16 Remove straightening bench.
17 Clean weld joints and sheet metal flange with round wire brush
18 Clean repair areas
19 Prime area to be repaired using primer filler
20 Carry out seam sealing after repairs IMPORTANT Supplement standard sealants with MB body sealant. AR97.10-P-4000CW
Sealant *BR00.45-Z-1003-01A
Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
21 Paint repair areas and adjacent surfaces
22 Apply additional cavity preservation   AR97.20-P-1500CW
NOTES Notes on cavity preservation   AH97.20-P-0001-01B
    Preservation agent *BR00.45-Z-1003-05A
23 Remove tarp IMPORTANT On all covered parts remaining in vehicle.
24 Install all removed detachable body components
Fig 2: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G07069811Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Side Portal Frame (210 589 17 23 00)
G07069812Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Welding Device (204 589 00 23 00)
G07069813Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A Sealant, white, 310 ml, DB supply specification 6069.20 A 001 989 63 20
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1092-02A Adhesive kit, body, 2-component adhesive A 009 989 36 71
BR00.45-Z-1003-05A Cavity preservation, solvent-free (1 l container) A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1001-13A Blind rivet 6.4 X14 A 003 990 35 97
BR00.45-Z-1012-13A Blind rivet 6.5 X12.5 A 004 990 16 97
