Remove/install cross strut on front axle - AR33.15-P-0161CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207

Shown on model 204 without 4MATIC

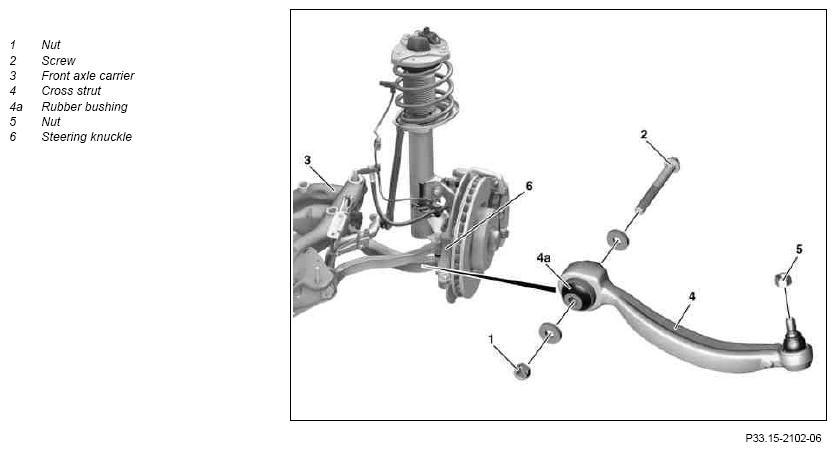

Fig 1: Identifying Front Axle Cross Strut Components

Courtesy of MERCEDES-BENZ USA

Shown on model 204 without 4MATIC

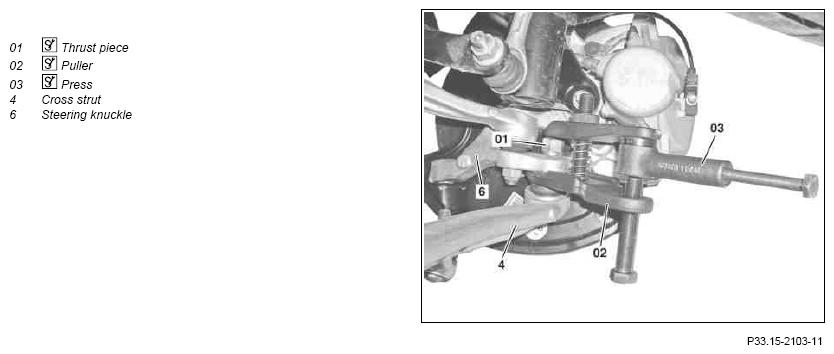

Fig 2: Removing/Installing Front Axle Cross Strut

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.8.10	Value changed: Self-locking nut, cross strut to front axle carrier		*BA33.20-P-1004-01N
	Value changed: Self-locking nut (repair kit), cross strut to front axle carrier	Model 204 except 4-MATIC, model 204.9 Model 207	*BA33.20-P-1005-01N
	Value changed: Self-locking nut (repair kit), cross strut to front axle carrier	Model 204 except 4-MATIC, model 204.9 Model 207	*BA33.20-P-1005-01N

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the of the parts will be reduced.
1.1	Remove both lower engine compartment paneling	Model 204.9	AR61.20-P-1105CY
1.2	Remove engine compartment paneling	Model 172 with gasoline engine	AR61.20-P-1105W
		Model 204.0/2/3, 207 with gasoline engine	AR61.20-P-1105EW
1.3	Remove bottom sections of soundproofing	Model 172 with diesel engine	AR94.30-P-5300W
		Model 204.0/2/3, 207 with diesel engine	AR94.30-P-5300EW
2	Unscrew nut (1)	When loosening the nut (1) the bolt (2) must not be twisted. It is essential to counterhold bolt (2). Otherwise the locating lugs for the caster adjustment in the rubber mount (4a) will be sheared off when the repair kit is fitted. Installation: Screw nut (1) of bolt (2) all the way on until it abuts, but do not tighten yet so that the rubber mount (4a) can twist when the vehicle is rocked to settle the suspension. Only tighten nut (1) in the ready-to-drive condition. Model 172
		Self-locking nut from cross strut to front-axle support	*BA33.20-P-1005-01Q
		Self-locking nut (repair kit) cross strut to front axle carrier Model 204, 207	*BA33.20-P-1006-01Q
		Self-locking nut from cross strut to front-axle support	*BA33.20-P-1004-01N
		Self-locking nut (repair kit) cross strut to front axle carrier	*BA33.20-P-1005-01N
3	Pull bolt (2) out of front axle carrier (3) and fold cross strut (4) downwards
4	Unscrew nut (5)	Installation: There must be no grease on the thread of the upper ball joint. Model 172
		Self-locking nut, cross strut to steering knuckle/upper ball joint Model 204, 207	*BA33.20-P-1007-01Q
		Self-locking nut, transverse link to steering knuckle assembly	*BA33.20-P-1006-01N
5	Press off cross strut (4) from upper ball joint of steering knuckle (6) and remove	Installation: There must be no grease on the cones of the upper ball joint and the steering knuckle (6). The grease in the radial groove on the upper ball joint must not be removed.
		Press	Figure
		Thrust piece	Figure
		Puller	Figure
	Checking
6	Check rubber mount (4a), rubber boot and upper ball joint in cross strut (4) for damage	Replace cross strut (4) if necessary.
		The version must be observed when the cross strut (4) is replaced.
	Cross strut modified	Model 204 (except 204.08/28/9)	BT33.15-P-0050-01CW
7	Install in the reverse order
8	Perform wheel alignment check	Model 204	AR40.20-P-0200CW
		Model 172, 207	AR40.20-P-0200EW

WHEEL LOCATION, HUB

Number	Designation				Model 172
BA33.20-P-1005-01Q	Self-locking nut for cross strut on front axle carrier	Stage 1		Nm	120
		Stage 2		∠°	180
BA33.20-P-1006-01Q	Self-locking nut (repair kit) cross strut to front axle carrier	Stage 1	M14X120X11.9	Nm	100
		Stage 2		∠°	180
BA33.20-P-1007-01Q	Self-locking nut, cross strut to steering knuckle/upper ball joint	Stage 1		Nm	50
		Stage 2		∠°	60

WHEEL LOCATION, HUB

Number	Designation				Model 204 except 4-MATIC, model 204.9	Model 2044-MATIC, model 204.9
BA33.20-P-1004-01N	Self-locking nut for cross strut on front axle carrier	Stage 1	M14X115X10.9	Nm	80	-
		Stage 2	M14X115X10.9	∠°	120	-
		Stage 1	M14X120X10.9	Nm	120	120
		Stage 2	M14X120X10.9	∠°	180	180
BA33.20-P-1005-01N	Self-locking nut (repair kit) cross strut to front axle carrier	Stage 1	M14X115X10.9	Nm	80	-
		Stage 2	M14X115X10.9	∠°	120	-
		Stage 1	M14X120X11.9	Nm	100	100
		Stage 2	M14X120X11.9	∠°	180	180
BA33.20-P-1006-01N	Self-locking nut, transverse link to steering knuckle assembly	Stage 1		Nm	50	50
		Stage 2		∠°	60	90

WHEEL LOCATION, HUB

Number	Designation				Model 207 without 4MATIC	Model 207 with 4MATIC
BA33.20-P-1004-01N	Self-locking nut for cross strut on front axle carrier	Stage 1	M14X115X10.9	Nm	80	-
		Stage 2	M14X115X10.9	∠°	120	-
		Stage 1	M14X120X10.9	Nm	120	120
		Stage 2	M14X120X10.9	∠°	180	180
BA33.20-P-1005-01N	Self-locking nut (repair kit) cross strut to front axle carrier	Stage 1	M14X115X10.9	Nm	80	-
		Stage 2	M14X115X10.9	∠°	120	-
		Stage 1	M14X120X11.9	Nm	100	100
		Stage 2	M14X120X11.9	∠°	180	180
BA33.20-P-1006-01N	Self-locking nut, transverse link to steering knuckle assembly	Stage 1		Nm	50	50
		Stage 2		∠°	60	90

Fig 3: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Thrust Piece (171 589 00 34 00)

Courtesy of MERCEDES-BENZ USA
