Cross strut modified - BT33.15-P-0050-01CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204 (except 204.08/09/28/29/9)

Modification to cross struts

The cross struts have been changed as part of the weight optimization process.

IMPORTANT When replacing a cross strut, check which version it is. If the old version (A) is installed in the vehicle, then this must be replaced on both sides by the new version (B).

A mixed installation of old and new is not permissible.

IMPORTANT Only the new version (B) is available as a replacement part.

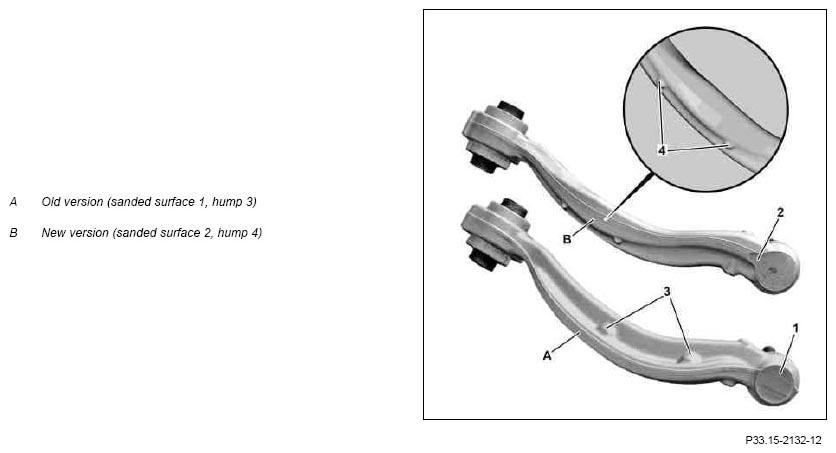

Fig 1: Identifying Cross Strut Versions
G07067197Courtesy of MERCEDES-BENZ USA
