Remove/install bottom engine compartment paneling - AR61.20-P-1105EW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218 (except 204.9) Vehicles with gasoline engine

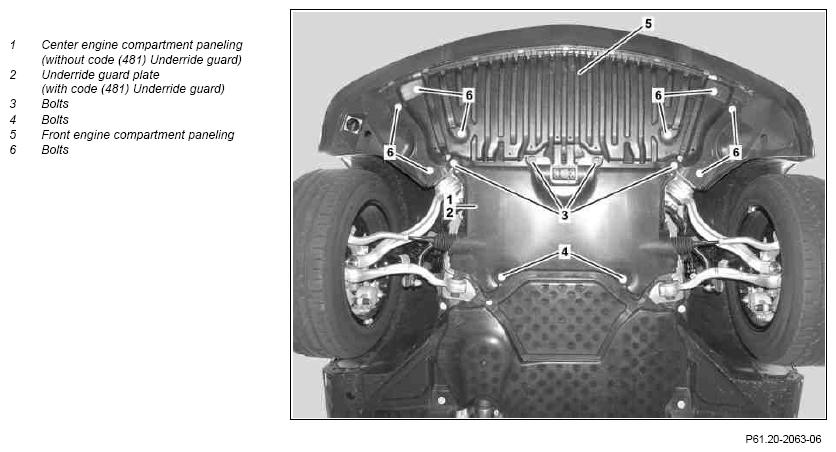

Shown on model 212

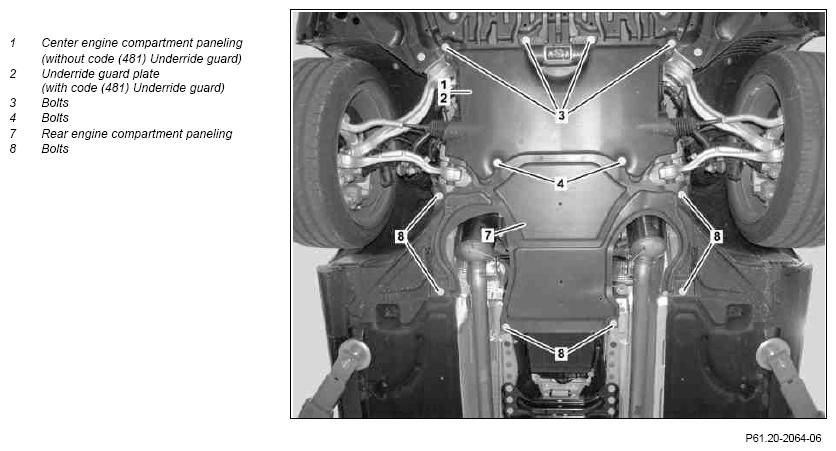

Shown on model 212 with engine 273
| Picture item, etc. | Work instructions | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Raise vehicle with vehicle lift | |||
| 1 | Center engine compartment paneling | Vehicle without code (481) Underride guard |
|
| 2 | Underride guard plate | Vehicles with code (481) Underride guard |
|
| *BA61.40-P-1001-01D | |||
| 5 | Front engine compartment paneling | On vehicles with code (481) Underride guard; first remove underride guard plate (2). Unscrew bolts (6) and remove front engine compartment paneling (5). Model 218 has an additional bolt for the front engine compartment paneling (5) on the bumper. |
|
| 6 | Rear engine compartment paneling | Unscrew bolts (4, 8) and remove rear engine compartment paneling (7). Vehicles with code (481) Underride guard: Remove bolts (4, 8). Move underride guard plate (2) down by loosening bolts (3) and remove rear engine compartment paneling (7). |
|
| *BA61.40-P-1001-01D | |||
UNDERBODY PROTECTION
| Number | Designation | Model 204 with code 481/430 | Model 207 with code 481 | |
|---|---|---|---|---|
| BA61.40-P-1001-01D | Bolt, underbody protection plate | Nm | 17 | 17 |
UNDERBODY PROTECTION
| Number | Designation | Model 212 with code 481 | Model 218 with code 481 | |
|---|---|---|---|---|
| BA61.40-P-1001-01D | Bolt, underbody protection plate | Nm | 17 | 17 |
