Remove/install rear panoramic glass roof - AR77.21-P-0600CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204 with CODE (413) Panoramic sliding roof
MODEL 246 with CODE (413) Panoramic glass roof with top sliding roof

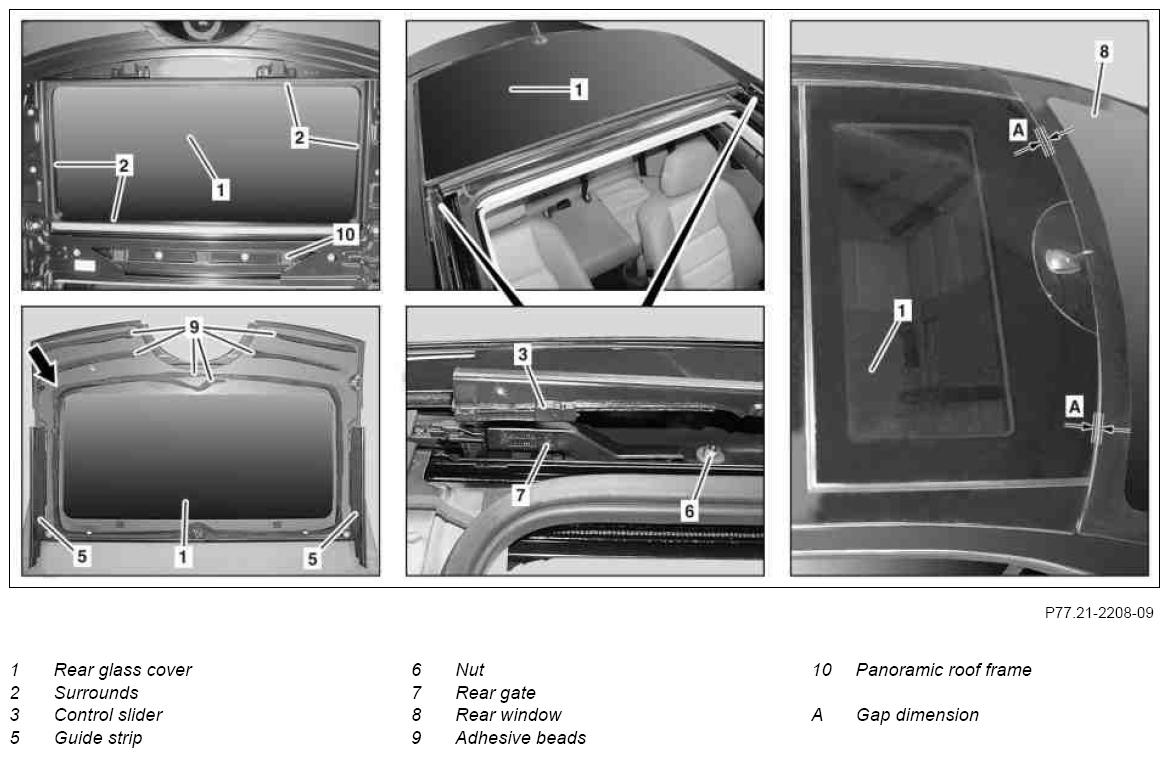

Shown on model 204.0
Shown on model 204.0
Shown on model 204.2
| Preparation | |||
| Notes on removal/installation of windows | AH67.10-P-1000-02RT | ||
| 1 | Prepare 1-component adhesive cartridge | AR67.10-P-1000-12SX | |
| Fig 4 | |||
| Cartridge preheater (not regulated), cartridge gun gotis://K_67.0_02.0 Window installation repair kit |
*BR00.45-Z-1089-02A | ||
| Removing | |||
| 2.1 | Unclip left and right water deflector (2) from roof paneling and remove | Unclip left and right water deflector (2) from roof paneling and remove | |
| 2.2 | Remove left and right front water deflector (2) | Model 204.2 | AR88.85-P-2100CX |
| Model 204.9 | AR88.85-P-2100CY | ||
| 3 | Remove covers (2) on inside of rear glass cover (1). | ||
| 4 | Remove multifunction antenna or multifunction antenna mock-up | Model 204.0 | AR82.70-P-8951CW |
| Model 204.3 | AR82.70-P-8951EC | ||
| 5 | Remove multifunction antenna | Model 246 with code (536) SIRIUS satellite radio | |
| 6 | Remove left and right control slide (3) | Model 204 | AR77.21-P-0510CW |
| Model 246 | AR77.21-P-0510NKB | ||
| 7 | Mask left and right side roof paneling with suitable adhesive tape | ||
| 8 | Unscrew nut (6) and remove rear gate (7) | ||
| 9.1 | Determine gap dimension (A) between rear glass cover and rear-end window (8). | Determine gap dimension (A) between rear glass cover and rear-end window (8). | |
| 9.2 | Determine gap dimension (A) between rear glass cover and rear roof paneling | Determine gap dimension (A) between rear glass cover and rear roof paneling | |

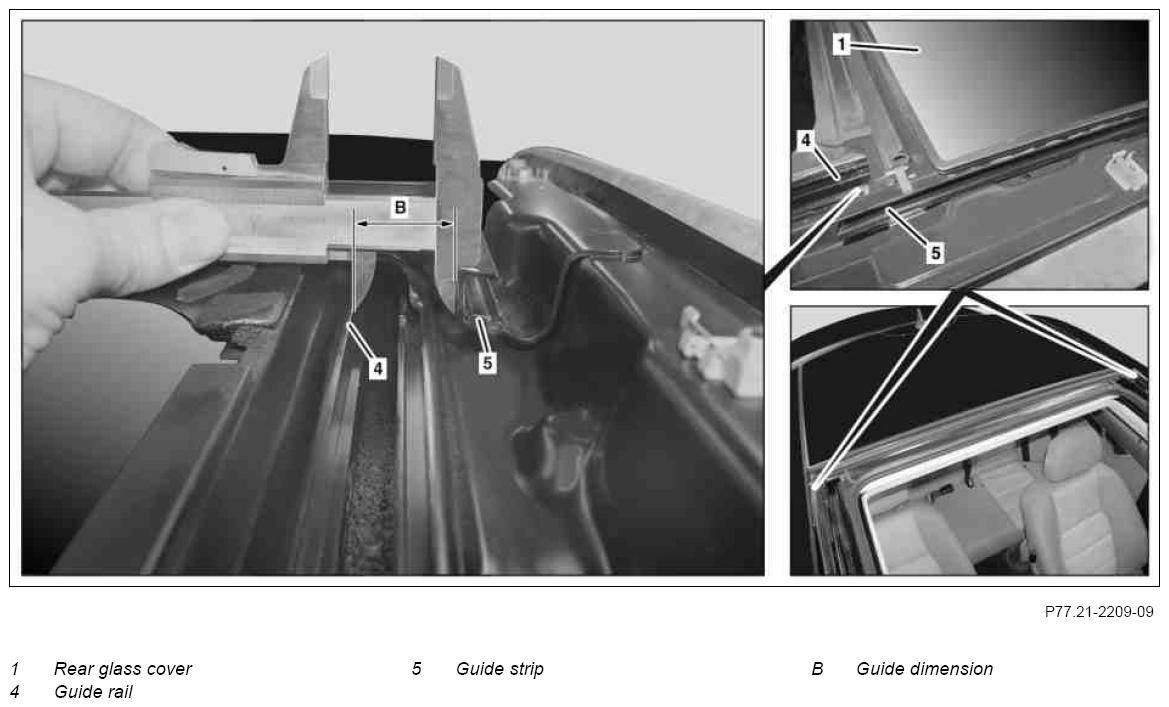

| 10 | Determine reference dimension (B) on left and right side of panoramic roof between guide rail (4) and guide strip (5) with vernier caliper. | ||
| 11 | Insert cutting wire with puller from window removal set through adhesive bead (9) on rear glass cover (1). | "Veritrac" window removal tool, cutting wire gotis://K_67.0_01.0 |
|
| Risk of injury due to tear or warming up of cutting wire and through glass splinters when cutting out glued windows | Wear protective gloves and safety glasses. | AS67.00-Z-0004-01A | |
| 12 | Cut out rear glass cover (1) with cutting wire and remove from panoramic roof frame (10) | "Veritrac" window removal tool, cutting wire gotis://K_67.0_01.0 |
|
| Suction lifting device gotis://K_67.0_03.0 |
|||
| Install | |||
| 13 | Prepare rear glass cover (1) for installation | The bonding surfaces should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the strength of the glued connections is impaired. Suction lifting device gotis://K_67.0_03.0 |
AR77.21-P-0600-02CW |
| Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | *BR00.45-Z-1089-02A | ||

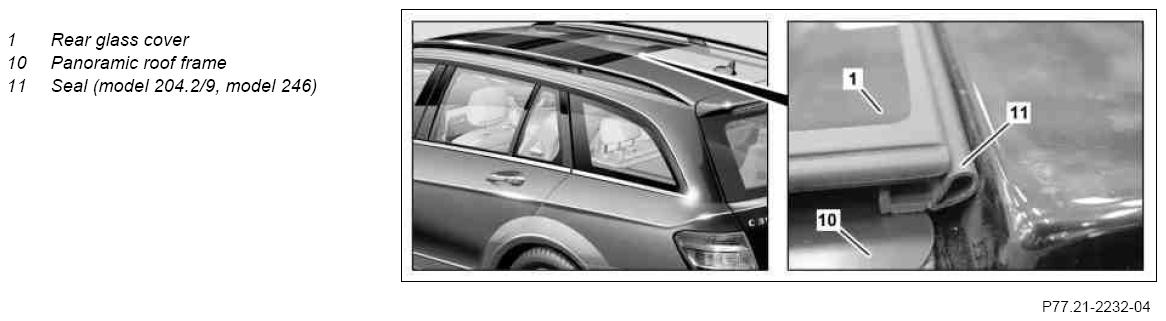

| 14 | Check seal (11) on panoramic roof frame (10), replace if necessary | On model 204.2/9 and model 246 | |
| 15 | Prepare panoramic roof frame (10) for installing rear glass cover (1) | The bonding surfaces should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the strength of the glued connections is impaired. Wet/dry vacuum cleaner gotis://P_00.12_06.0 |
AR77.21-P-0600-05CW |
| Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | *BR00.45-Z-1089-02A | ||
| 16 | Apply adhesive material to rear glass cover (1) | The bonding surfaces should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the strength of the glued connections is impaired. Cartridge gun gotis://K_67.0_02.0 |
AR77.21-P-0600-03CW |
| Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | *BR00.45-Z-1089-02A | ||
| 17 | Install rear glass cover (1) | AR77.21-P-0600-06CW | |
Helper required |
Figure | ||
| 18 | Insert rear gate (7) and tighten nut (6) | ||
| 19 | Install left and right control slide (3) | Model 204 | AR77.21-P-0510CW |
| Model 246 | AR77.21-P-0510NKB | ||
| 20 | Remove adhesive tape on left and right side roof paneling | ||
| 21 | Install covers (2) | ||
| 22 | Install multifunction antenna or multifunction antenna mock-up | Model 204.0 | AR82.70-P-8951CW |
| Model 204.3 | AR82.70-P-8951EC | ||
| 23 | Install multi-function antenna | Model 246 with code (536) SIRIUS satellite radio | 24.1 |
| 24.1 | Install left and right water deflector (2) | Models 204.0/3 and model 246 | |
| 24.2 | Install left and right front water deflector (2) | Model 204.2 | AR88.85-P-2100CX |
| Model 204.9 | AR88.85-P-2100CY | ||
| 25 | Clean rear glass cover (1), adjacent paint and glass surfaces and vehicle interior compartment | Cleaner | *BR00.45-Z-1007-04A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |
| BR00.45-Z-1007-04A | Cleaner, plastic windows, fabric top 500 ml | A 001 986 38 71 |
