Install panoramic rear glass roof - AR77.21-P-0600-06CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of MERCEDES-BENZ USA
Shown on model 204.0
Install rear glass cover (1) within 5 min. after applying adhesive to body and align, otherwise adhesion force of glue will be impaired.
Carefully remove contamination caused by adhesive immediately.
- Position rear glass cover (1) above panoramic roof frame with aid of helper, carefully lay onto adhesive bead and lightly press on.
Courtesy of MERCEDES-BENZ USA

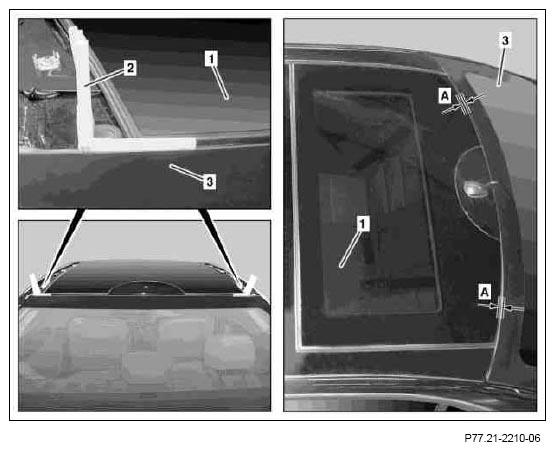

Insert feeler gauges (2) adjusted to the gap dimension (A) determined before removal, between rear glass cover (1) and rear-end window (3) and align rear glass cover (1)..
On model 204.2/9
the feeler gauges (2) are installed between the rear glass cover (1) and rear roof paneling.
Courtesy of MERCEDES-BENZ USA
Shown on model 204.0

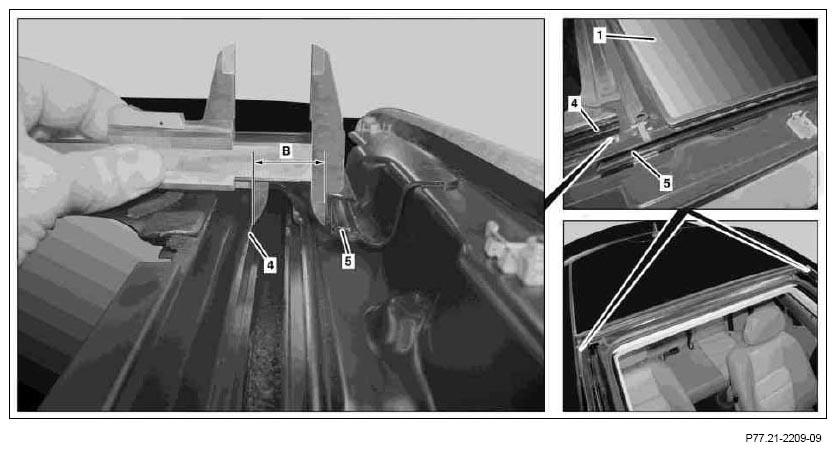

- Adjust reference dimension (B) determined before removal on left and right side of panoramic roof between guide rail (4) and guide strip (5) by moving rear glass cover (1) at side.
Precisely keep reference dimension (B), otherwise the front glass roof is not guided correctly and the panoramic roof can be damaged.
- Place suitable loads on rear glass cover (1) during curing time of adhesive.
Use weights with large surface, e.g. sandbags, otherwise the rear glass cover (1) can be damaged.
- Remove cup suction tool.
- Cup suction tool.
