Apply adhesive material for rear glass roof - AR77.21-P-0600-03CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Repair kit, installing window, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |
Illustrated on model 204.0

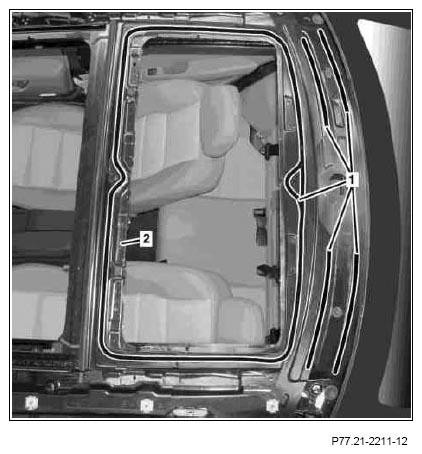

Do not touch bonding surfaces with bare fingers. The bonding surfaces (1) must be free of dust, oil, grease, wax, dirt residues and other adhesive components, otherwise the adhesive force of the glued connection is impaired.
- Guide application nozzle on bonding surfaces (1) along panoramic roof frame (2). Simultaneously apply adhesive bead uniformly with a height of approx. 14 mm and a width of approx. 8 mm.
Cartridge gun gotis://K_67.0_02.0
Immediately remote contamination caused by adhesive material.
