Remove/install steering wheel - AR46.10-P-0100CW
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207
| Remove/install | |||
| 1 | Turn steering wheel (1) into the center position (front wheels in straight-ahead position) | ||
| Risk of injury Injuries may result when performing testing or repair work on airbag or emergency tensioning retractor units | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| 2 | Remove airbag unit from steering wheel (1) | Model 204.0/2 up to model year 2012 /YoM 11 Model 204.9 | AR91.60-P-0660CW |
| Model 204.9 Model 204.0/2 as model year 2012/YoM 11 | AR91.60-P-0660EL | ||

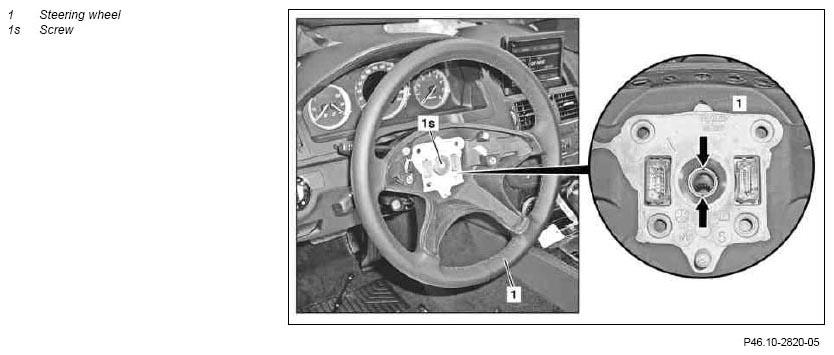

| 3 | Remove bolt (1s), in the process counterhold the steering wheel (1) | ||
| *BA46.10-P-1001-02J | |||
| 4 | Take steering wheel (1) out until electrical connection (2) is accessible and disconnect electrical connection (2) | Vehicles with CODE 442 (Luxury multifunction steering wheel) | |
| 5 | Remove steering wheel (1) | ||
| 6 | Install in the reverse order | ||
| 7 | Conduct a road test | Turn signal reset When the steering wheel is offset by more than 1 tooth, satisfactory resetting of the turn signal is no longer guaranteed. Airbag indicator lamp The SRS indicator lamp must not light up on full steering lock in both directions. Steering wheel position: If the steering wheel is not on straight, offset it by a maximum of 1 tooth. |
STEERING WHEEL
| Number | Designation | Model 204 | Model 207 | |
|---|---|---|---|---|
| BA46.10-P-1001-02J | Bolts, steering wheel to steering shaft | Nm | 80 | 80 |
