Remove/install airbag unit on steering wheel - AR91.60-P-0660EL
WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 /2 as of model year 2012 /YoM 11
Shown on model 218
Shown on model 218
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units | AH91.00-P-0002-01M | ||
| Assessment of airbag and emergency tensioning retractor units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal regulations on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Place steering column in the central height position | ||
| 2 | Disconnect ground line for on-board electrical system battery (G1) | Model 204 | AR54.10-P-0003CW |

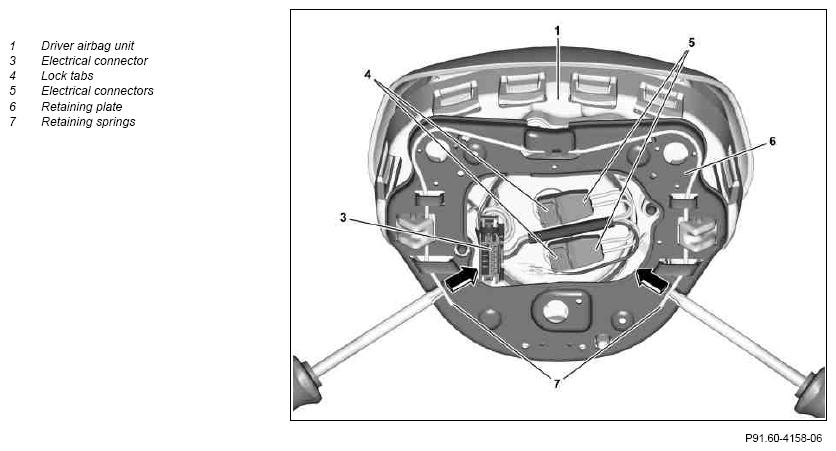

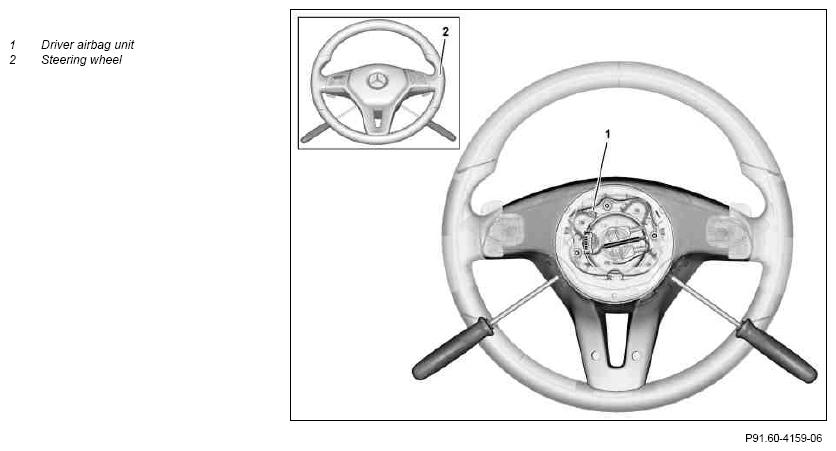

| 3 | Insert Torx screwdriver into openings on steering wheel (2) and press retaining springs (7) inward | Torx screwdriver T20 The position of the openings can be determined by carefully feeling with the Torx screwdriver. |
|
| 4 | Remove driver airbag unit (1) far enough from steering wheel (2) until electrical connector (3) is accessible | ||
| 5 | Disconnect electrical connector (3) from steering column tube module | ||
| 6 | Disconnect driver airbag unit (1) from steering wheel (2) | ||
| Notes on disposing of airbag and emergency tensioning retractor units | OS91.00-P-0001-01A | ||
| 7 | Install in the reverse order | ||
| 8 | Connect Star Diagnosis and check Supplemental Restraint System (SRS) | When installing new driver airbag unit (1). | AD00.00-P-2000-04A |
