Remove/install airbag unit on steering wheel - AR91.60-P-0660CW

WARNING: This page is about a different car, the 2011 Mercedes-Benz C300, 2010 Mercedes-Benz C300, 2009 Mercedes-Benz C300, and 2008 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2 up to model year 2012/YoM 11

MODEL 204.9

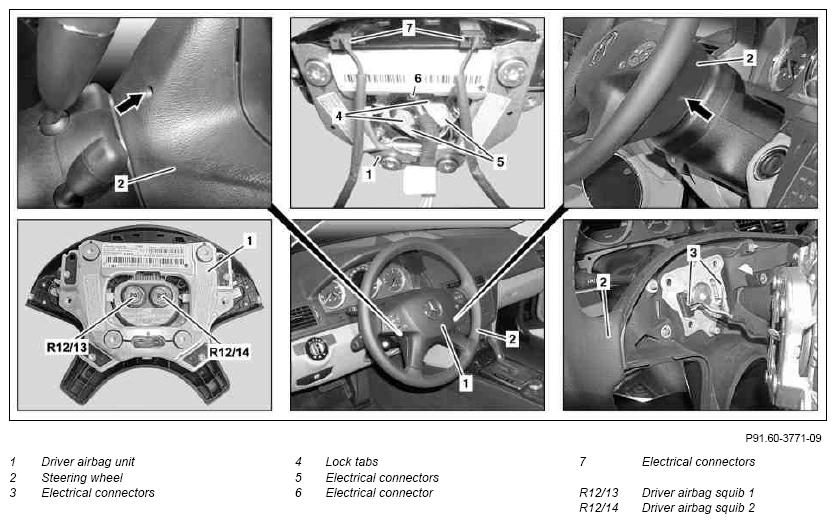

Fig 1: Identifying Steering Wheel Airbag Unit Components
G07741507Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply. AS91.00-Z-0001-01A
NOTES Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units   AH91.00-P-0002-01M
IMPORTANT Assessment of airbag and emergency tensioning retractor units in accident vehicles   AH91.00-P-0006-01B
IMPORTANT Legal regulations on handling and storing airbags and emergency tensioning retractor units   AH91.00-P-0004-01A
1 Place steering column in the central height position
2 Disconnect ground line for on-board electrical system battery (G1)   AR54.10-P-0003CW
3 Insert screwdriver bit into openings (arrows) on steering wheel (2) and unscrew bolts on driver sidebag unit (1) IMPORTANT The screws remain on the steering wheel (2).
TORQUE SPECIFICATION
*BA91.60-P-1005-01M
    SPECIAL TOOL Screwdriver bit Fig 2
4 Remove driver airbag unit (1) far enough from steering wheel (2) so that electrical connectors (5, 6, 7) are accessible
5 Disconnect electrical connectors (7) Only with code (428) Steering wheel shift paddles.
REFER TO COMPONENT MODIFICATIONS Coding on coupling housing changed   BT54.18-P-0002-01CW
6 Disconnect electrical connector (6)
7 Release lock tabs (4) and disconnect electrical connectors (5) NOTES Never disconnect electrical connectors (3) with electrical connectors (5) connected, because otherwise the driver airbag unit (1) may be triggered.
    SPECIAL TOOL Removal lever
IMPORTANTInstallation:  The electrical connectors (5) must audibly engage when being plugged onto driver airbag squib 1 (R12/13) and driver airbag squib 2 (R12/14).
Fig 3
8 Disconnect driver airbag unit (1) from steering wheel (2) IMPORTANT If driver airbag unit (1) is being replaced, the defective driver airbag unit (1) must be disposed of properly.
REFER TO FORMS Notes on disposing of airbag and emergency tensioning retractor units   OS91.00-P-0001-01A
9 Install in the reverse order
10 Check supplemental restraint system (SRS) with STAR DIAGNOSIS IMPORTANT After replacing the driver airbag unit (1).
  Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
AIRBAG

Number Designation   Model 204.0/2/9
BA91.60-P-1005-01M Bolt, airbag to steering wheel Nm 7
