Brake system - inspect fluid level - AP42.10-P-4210SX
MODEL 216, 221
MODIFICATION NOTES
| 20.4.10 | Remove covering over brake fluid reservoir, added | Step 1 |
| Remove/install | |||
|---|---|---|---|
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||

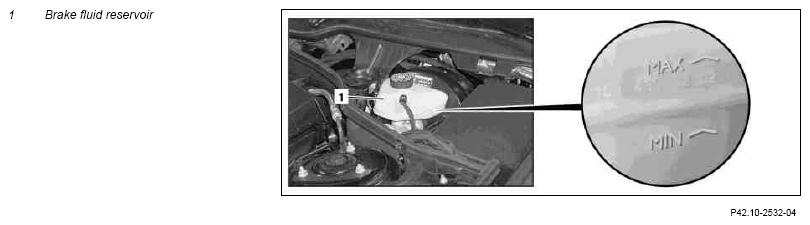

| 1 | Remove cover above brake fluid reservoir (1) | If installed | |
| Checking | |||
| 2 | Check fluid level in brake fluid reservoir (1), correct if necessary | If the brake fluid level is too low, determine the cause and rectify: ↓ Check brake lining thickness. |
AP42.10-P-4253A |
| Inspect brake system for leaks with pressure tester. | AR42.10-P-0015SX | ||
| *BF42.10-P-1001-01I | |||
| 3 | Install in the reverse order |
BRAKE FLUID
| Number | Designation | Model 216 | Model 221 | ||
|---|---|---|---|---|---|
| BF42.10-P-1001-01I | Brake fluid | Filling capacity | Liters | ≈0, 5 | ≈0, 5 |
| Specifications for Operating Fluids | Sheet | BB00.40-P-0330-01A | BB00.40-P-0330-01A | ||
| Sheet | BB00.40-P-0331-00A | BB00.40-P-0331-00A | |||
