Remove/install rear crossmember - AR64.20-P-1100RT
MODEL 251
| Remove | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on body repair | All models | AH60.00-N-0001-01A | |
| 1 | Remove detachable body components in the repair area | ||
| 2 | Cover detachable body components remaining in vehicle (area to be repaired). | Tarpaulin (fire-resistant) | *WH58.30-Z-1001-40A |
| 3 | Separate outer rear center section | AR64.20-P-1000RT | |
| 4 | Remove rear crossmember | AR64.20-P-1100-01RT | |

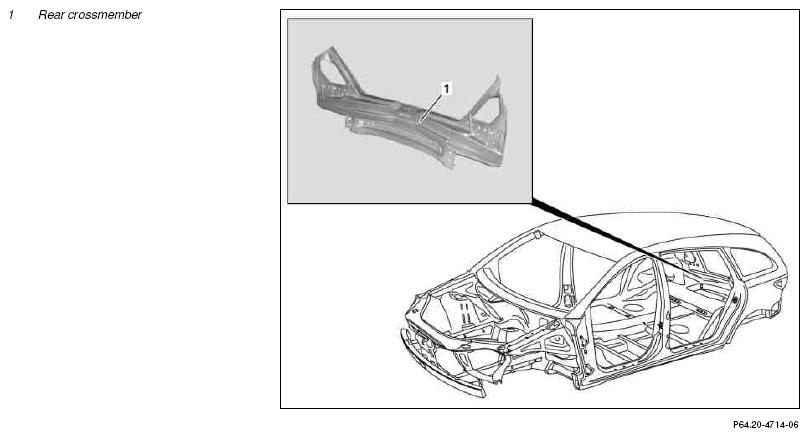

| Figure | |||
| *WH58.30-Z-1002-01A | |||
| *WH58.30-Z-1006-01A | |||
| *WH58.30-Z-1001-03A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Body saw (electric/pneumatic) | *WE58.40-Z-1004-03A | ||
| 5 | Grind mating surfaces on vehicle for rear crossmember | AR64.20-P-1100-06RT | |
| *WH58.30-Z-1001-03A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| 6 | Prepare rear crossmember for installation | AR64.20-P-1100-02RT | |
| *WH58.30-Z-1002-02A | |||
| *WH58.30-Z-1001-03A | |||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A | ||
| Install | |||
| Risk of death caused by high voltage used for arc welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding spatter and UV-light while welding. Risk of poisoning caused by inhaling welding vapors. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the danger zone. Use air extractor. | AS00.00-Z-0007-01A | |
| 7 | Weld in rear crossmember | AR64.20-P-1100-04RT | |
| Measures for preventing damage to vehicles or components when performing arc welding work | All models | AH00.00-N-0005-01A | |
| *WH58.30-Z-1003-02A | |||
| *WH58.30-Z-1001-03A | |||
| Inert gas welder | *WE58.40-Z-1001-02A | ||
| Spot welder | *WE58.40-Z-1002-02A | ||
| Drill (electric/pneumatic) | *WE58.40-Z-1001-03A | ||
| Wet/dry vacuum cleaner | *WE58.40-Z-1005-03A | ||
| 8 | Install outer rear center section | AR64.20-P-1000RT | |
| 9 | Clean repair areas | ||
| 10 | Prime area to be repaired with priming filler | ||
| 11 | Perform seam sealing after repair | AR97.10-P-4000RT | |
| 12 | Paint repair areas and adjacent surfaces | ||
| 13 | Apply additional cavity preservation | AR97.20-P-1500RT | |
| 14 | Reinstall all detachable body components removed |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1006-01A | Vario Drill WS 91 spot weld removing tool |
| WH58.30-Z-1002-02A | Hole punching pliers, dia. 7 mm |
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1001-40A | Tarp (fire-resistant) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1002-02A | Spot welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
