Cavity preservation following repair work - AR97.20-P-1500RT

MODEL 251

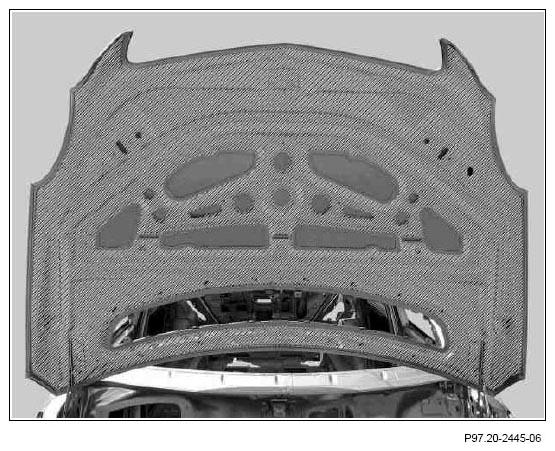

Engine hood

Fig 1: Identifying Engine Hood Repair

Courtesy of MERCEDES-BENZ USA

Driver and left rear door

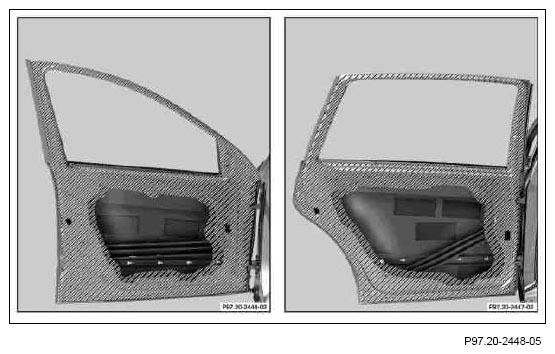

Fig 2: Identifying Driver And Left Rear Door Repair Area

Courtesy of MERCEDES-BENZ USA

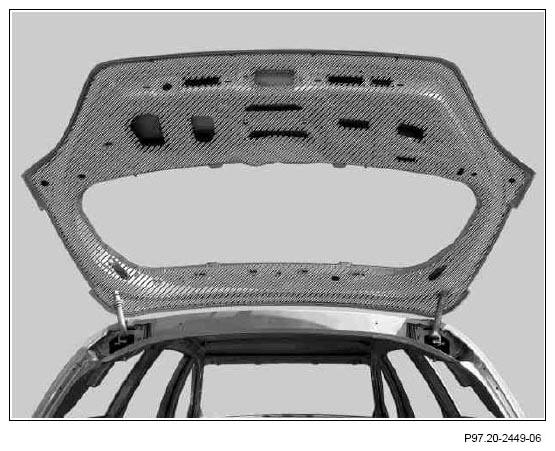

Rear-end door

Fig 3: Identifying Rear-End Door Repair Area

Courtesy of MERCEDES-BENZ USA

Entire front end, longitudinal member and front firewall

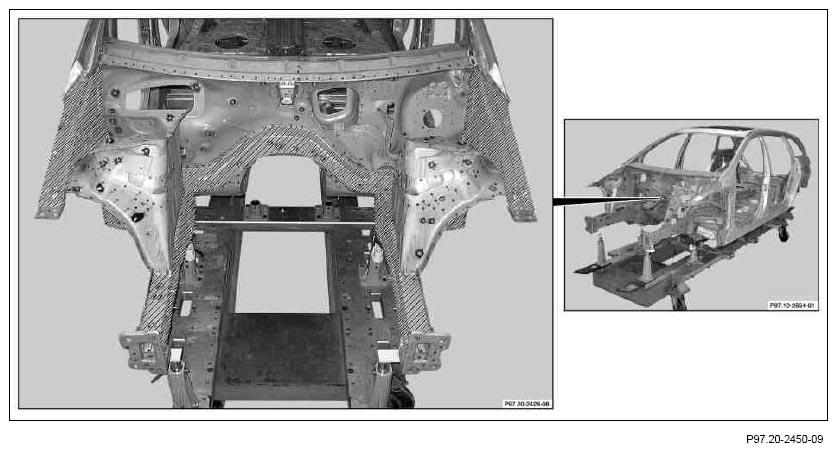

Fig 4: Identifying Entire Front End, Longitudinal Member And Front Firewall Repair Area

Courtesy of MERCEDES-BENZ USA

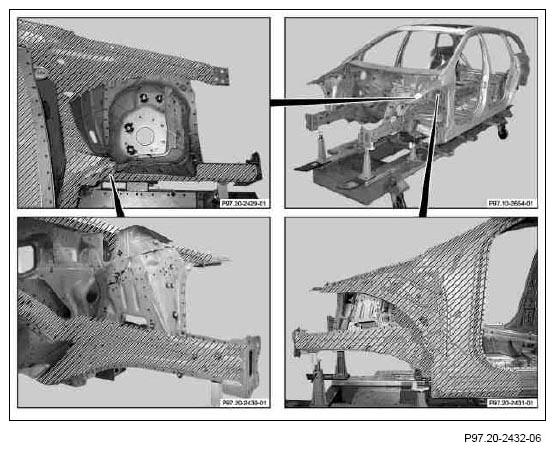

Outer A-pillar, front upper longitudinal member and left front longitudinal member

Fig 5: Identifying Outer A-Pillar, Front Upper And Left Front Longitudinal Member Repair Area

Courtesy of MERCEDES-BENZ USA

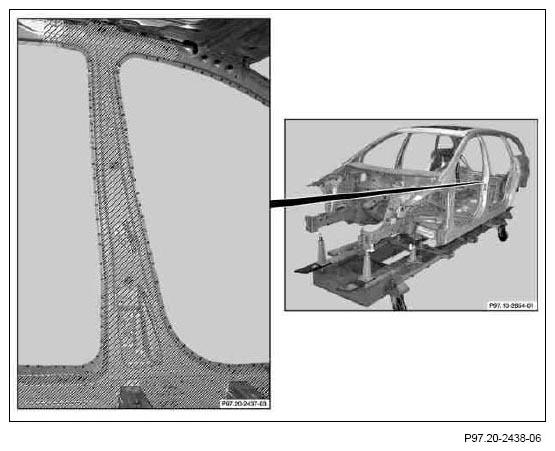

Left inner A-pillar

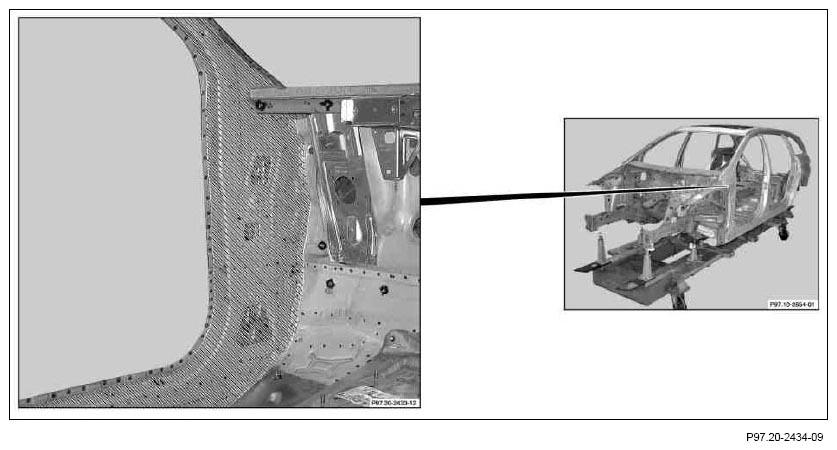

Fig 6: Identifying Left Inner A-Pillar Repair Area

Courtesy of MERCEDES-BENZ USA

Left outer side longitudinal member

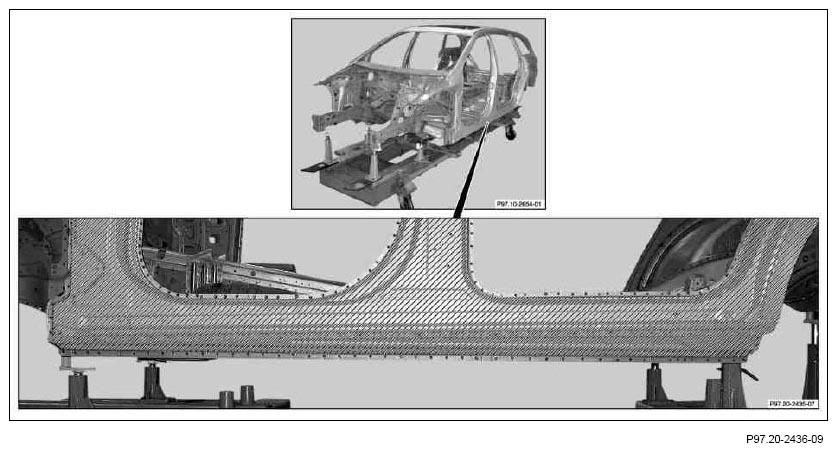

Fig 7: Identifying Left Outer Side Longitudinal Member Repair Area

Courtesy of MERCEDES-BENZ USA

Left inner B-pillar

Fig 8: Identifying Left Inner B-Pillar Repair Area

Courtesy of MERCEDES-BENZ USA

Front roof frame

Fig 9: Identifying Front Roof Frame Repair Area

Courtesy of MERCEDES-BENZ USA

Left side roof frame

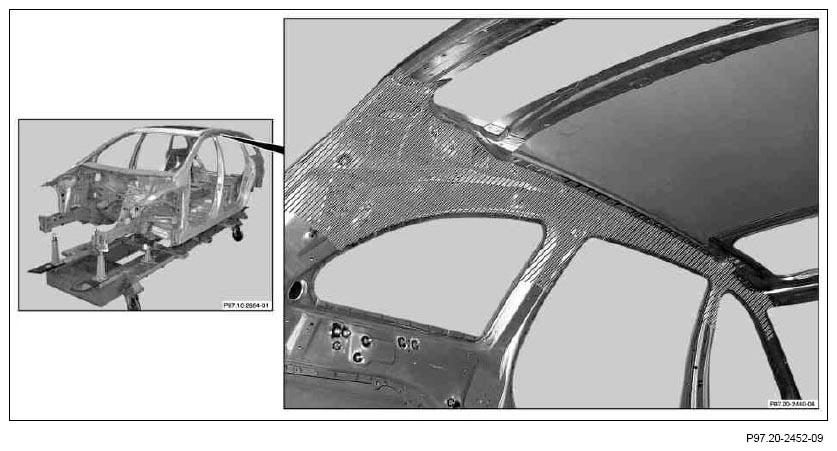

Fig 10: Identifying Left Side Roof Frame Repair Area

Courtesy of MERCEDES-BENZ USA

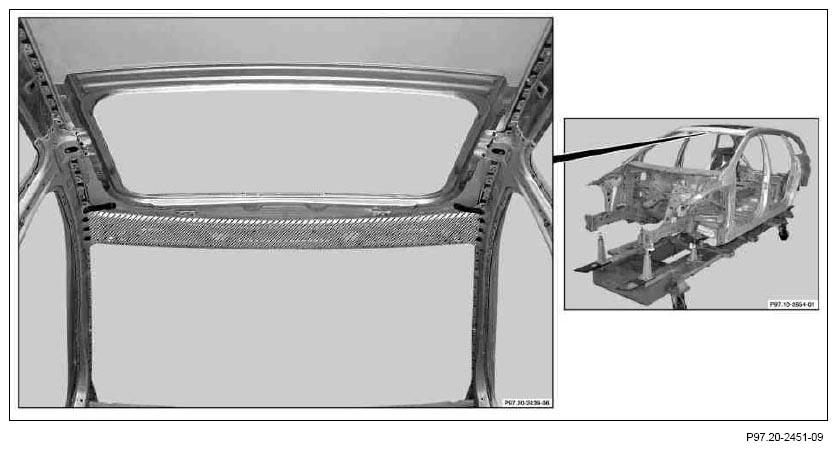

Rear roof frame

Fig 11: Identifying Rear Roof Frame Repair Area

Courtesy of MERCEDES-BENZ USA

Left outer rear fender

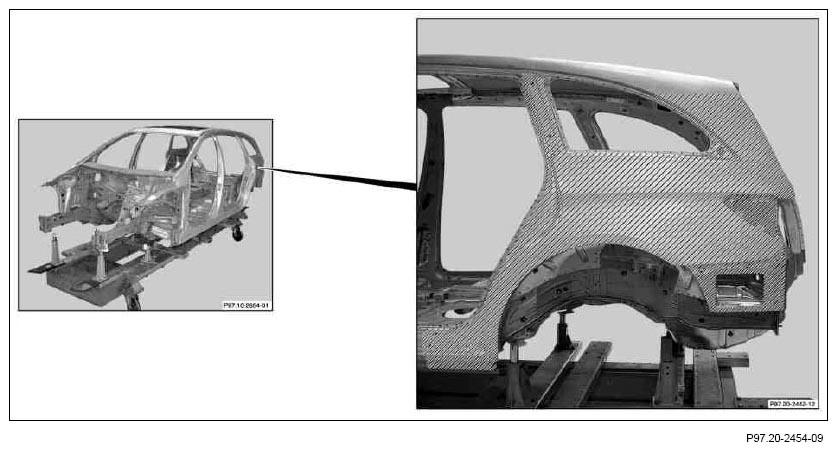

Fig 12: Identifying Left Outer Rear Fender Repair Area

Courtesy of MERCEDES-BENZ USA

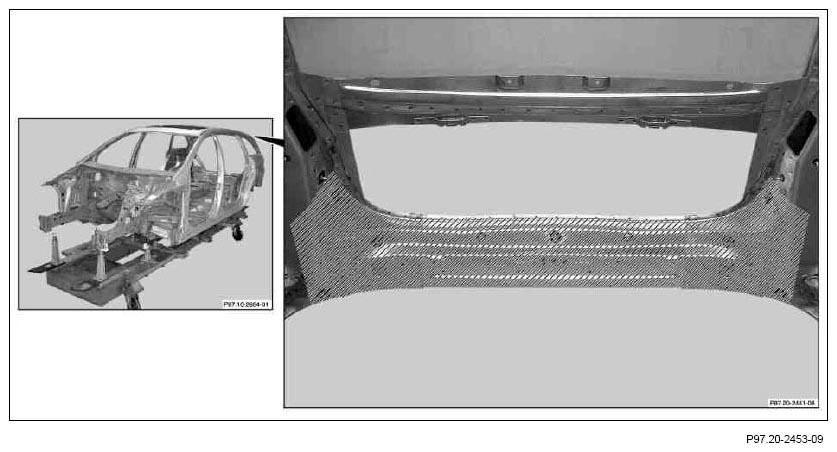

Complete rear end

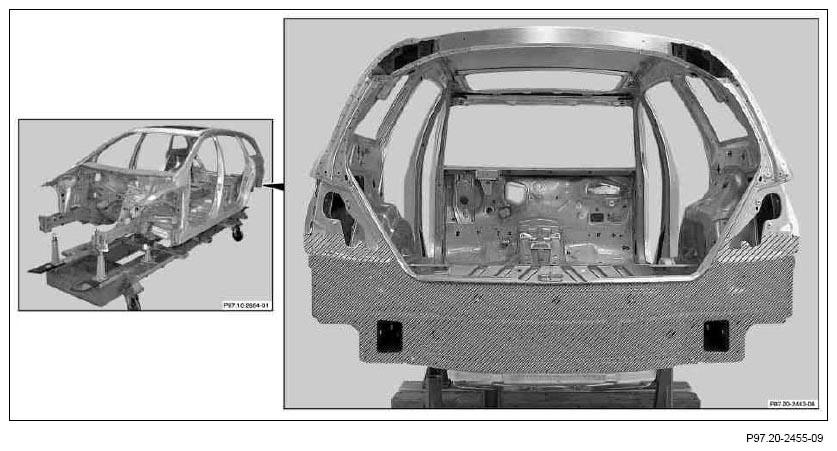

Fig 13: Identifying Complete Rear End Repair Area

Courtesy of MERCEDES-BENZ USA

Entire underbody

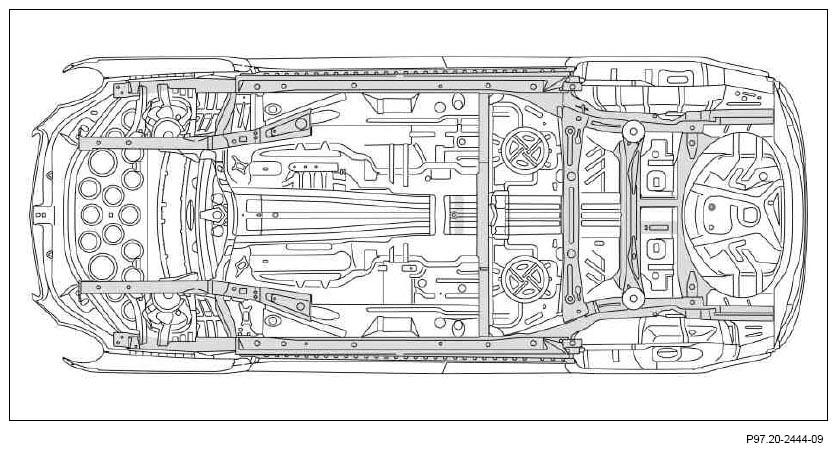

Fig 14: Identifying Entire Underbody Repair Area

Courtesy of MERCEDES-BENZ USA

	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when handling anticorrosion agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
1	Perform repair preservation	Apply cavity preservation agent in marked areas only after completing sealing and paintwork, however, before assembly work from inside. Apply repair preservation agent twice with a drying time of 5 minutes in between. The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. Insert spray hoses as far as possible into cavities. Spray while inserting and pulling out slowly.
	Cavity protection, general		GF98.00-P-2045A
		Combination pressure spray gun (corrosion protection)
		MB cavity wax preservation, 1 l	*BR00.45-Z-1003-05A
2	Remove cavity sealant from drain holes	The processing temperature should not be less than 15 °C. Additional preservation measures may be required depending on the repair area deviating from the standard cavity preservation illustrated.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity sealant, solvent-free (1 l container)	A 000 986 72 70 05
