Remove/install front axle brake caliper - AR42.10-P-0070RT
MODEL 251
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on self-locking nuts and bolts | All models | AH00.00-N-0001-01A | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |
| 1 | Lift/jack up vehicle | AR00.60-P-1000RT | |
| 2 | Remove the front wheels | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050RT | ||
| 3 | Remove brake pads from floating brake caliper | AR42.10-P-0160RT | |
| 4 | Detach brake hose (3) from floating brake caliper (1) | ||
| Notes on installing brake hoses | AH42.10-P-9406-01RT | ||
| *BA42.10-P-1001-14A | |||

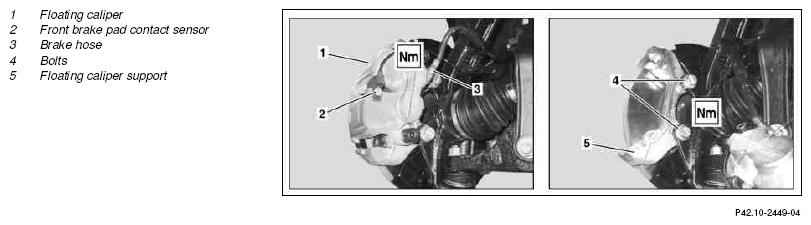

| Figure | |||
| 5 | Detach electrical feed line of front brake pad contact sensor (2) from floating brake caliper (1) | ||
| Notes on installing brake pad wear sensor contact sensors | AH42.10-P-0003-01RT | ||
| 6 | Remove floating brake caliper (1) | ||
| 7 | Unscrew bolts (4) and remove floating caliper carrier (5) | ||
| *BA42.10-P-1003-10L | |||
| 8 | Install in the reverse order | ||
| 9 | Bleed brake system | AR42.10-P-0010RT |
BRAKE HOSES, BRAKE LINES
| Number | Designation | Model 251 | |
|---|---|---|---|
| BA42.10-P-1001-14A | Brake line to floating brake caliper | Nm | 22 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 251 except 251.077/177 | Model 251.077/177 | ||
|---|---|---|---|---|---|
| BA42.10-P-1003-10L | Self-locking bolt, caliper support to steering knuckle | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | 45 | 45 | ||
