Check wiper arms and adjust - AR82.30-P-6000RT

MODEL 251

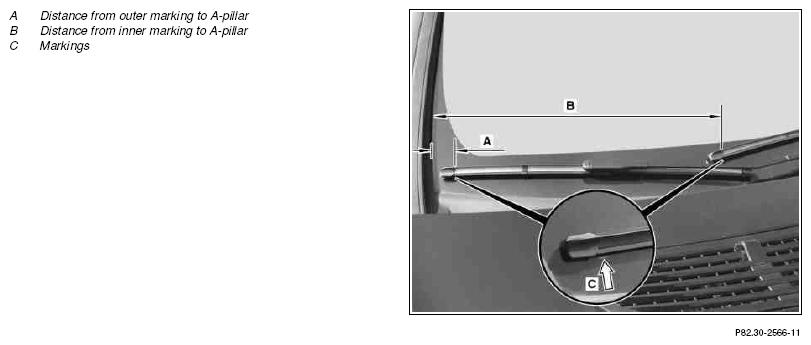

Fig 1: Checking Wiper Arms Distance (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Testing Brake System With Pressure Tester For Leaks - Shown On Left Front Wheel Brake

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
		Make sure when working on lifted wiper arms that they do not fall onto the windshield. Otherwise the windshield will be damaged.
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Check wiper blades, replace if necessary	Check for wear and damage.
3	Check position of wiper arms in parked position against markings (arrows C) in the windshield	The ends of the wiper blade should be positioned on the markings (arrows C) and should be offset downward and upward a maximum of 10 mm. The distance from the outer marking to the A-pillar (A) is approx. 60 mm, the distance from the inner marking to the A-pillar (B) is approx. 510 mm. Excessive deviations may be caused by a damaged wiper linkage, incorrect positioning of the wiper arms on the linkage pins, or bent wiper arms. Replace damaged components, see: ↓
		Remove/install wiper system	AR82.30-P-6400RT
		Remove and install wiper arm	AR82.30-P-6100RT
4	Move wiper system from parked position	Switch on ignition and windshield wiper. When the wiper arms are in the vicinity of the upper reverse position, switch off ignition and windshield wiper. On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).

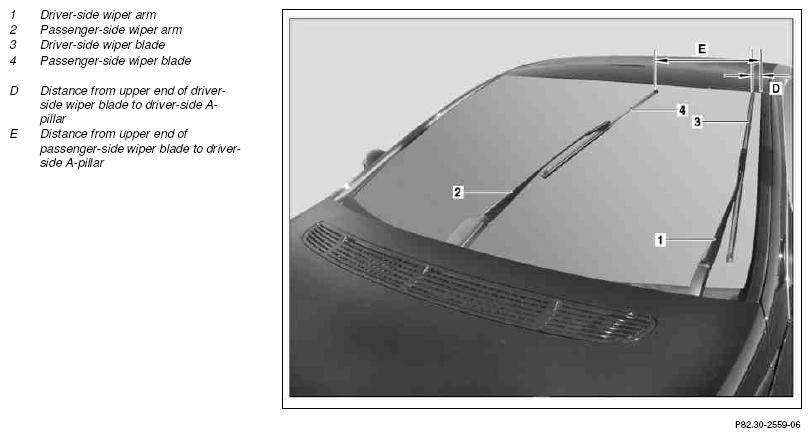

5	Move wiper arms manually to upper reverse position.	Upper reversing position: The distance from the upper end of the driver-side wiper blade to the driver-side A-pillar (D) is approx. 30 mm, The distance from the upper end of the passenger-side wiper blade to the driver-side A-pillar (D) is approx. 460 mm,
	Measure
6	Check angle of incidence of wiper arms to windshield	Select a suitable adjustment method on the basis of the result of the check.	AR82.30-P-6000-01GZ
	Notes on wiper arm adjustment		AH82.30-P-0001-01GZ *BE82.30-P-1001-01K  *BE82.30-P-1002-01K  *BE82.30-P-1003-01K  *BE82.30-P-1004-01K
		Adjustment tool set	Fig 3
		Adapter	Fig 4
	Adjust
7.1	Adjust angle of incidence of wiper arms in parked position	In the event of impermissible deviations only in reversing position or both in reverse and in parked position.	AR82.30-P-6100-01GZ
	Notes on wiper arm adjustment		AH82.30-P-0001-01GZ *BE82.30-P-1001-01K  *BE82.30-P-1002-01K  *BE82.30-P-1003-01K  *BE82.30-P-1004-01K
		Adjustment tool set	Fig 3
		Adapter	Fig 4
7.2	Adjusting wiper system	In the event of impermissible deviations of both wiper arms only in parked position.	AR82.30-P-6400-01RT
	Notes on wiper arm adjustment		AH82.30-P-0001-01GZ *BE82.30-P-1003-01K
		Adjustment tool set	Fig 3
		Adapter	Fig 4
	Checking
8	Carry out function check
	Windshield wipers, windshield washer system and headlamp cleaning system - function check		AP82.30-P-8252RT

WIPER ARM TEST AND ADJUSTMENT VALUES

Number	Designation		Model 251, left-hand steering	Model 251, right-hand steering
BE82.30-P-1001-01K	Angle of incidence of wiper arm on driver-side in reversing position	∠°	-2.0 to -6.0	+2.0 to +6.0
BE82.30-P-1002-01K	Angle of incidence of wiper arm on front passenger side in reversing position	∠°	-4.0 to -8.0	+4.0 to +8.0
BE82.30-P-1003-01K	Angle of incidence of wiper arm on driver-side in parked position	∠°	+2.0 to +6.0	-2.0 to -6.0
BE82.30-P-1004-01K	Angle of incidence of wiper arm on front passenger side in parked position	∠°	+4.0 to +8.0	-4.0 to -8.0

Fig 3: Identifying Adjustment Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter (211 589 05 21 00)

Courtesy of MERCEDES-BENZ USA
