Remove and install wiper arm - AR82.30-P-6100RT

MODEL 251

Shown on model 251 with engine 272

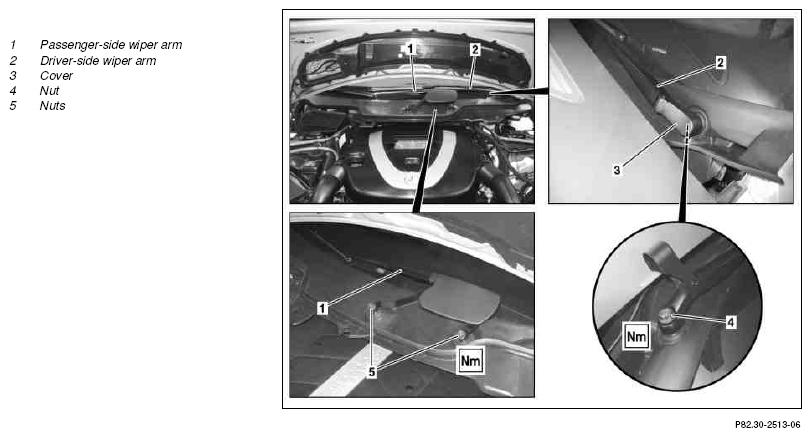

Fig 1: Identifying Wiper Arm Remove/Install Components - Shown On Model 251 With Engine 272

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

11.1.11

BA table added

Steps 5, 6

*BA82.30-P-1003-01K

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
	Installation:  Information on aligning wiper arms	See: ↓
		Check wiper arms and adjust	AR82.30-P-6000RT
1	Move the wiper arms into park position and switch off the wiper system
2	Switch off ignition and remove the transmitter key from the EZS control unit	On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
3	Open engine hood and raise to vertical position		AR88.40-P-1000RT
4	Raise cover (3) on driver side wiper arm (2)	When removing driver side wiper arm (2).
5	Unscrew nut (4) and loosen driver side wiper arm (2) drive shaft and remove	When removing driver side wiper arm (2). Carefully remove driver side wiper arm (2) to prevent damaging paint on engine hood. The wiper arm should not spring back on the windshield to prevent damage.
			*BA82.30-P-1003-01K
6	Unscrew nut (5) on passenger side wiper arm (1)	When removing passenger side wiper arm (1).
			*BA82.30-P-1003-01K
7	Loosen passenger side wiper arm (1) from wiper drive shaft and remove	When removing passenger side wiper arm (1). Carefully remove passenger side wiper arm (1) to prevent damaging paint on engine hood. The wiper arm should not spring back on the windshield to prevent damage.
8	Install in the reverse order
9	Check wiper arms and adjust		AR82.30-P-6000RT
10	Carry out function check		AP82.30-P-8252RT

WINDSHIELD WIPER

Number	Designation		Model 251
BA82.30-P-1003-01K	Nut on wiper motor shaft	Nm	32
