Retrofit mount for Tablet PC - AZ82.80-P-0003RT

MODEL 251.0##/1## 1# except CODE (864) Rear entertainment system except CODE (866) Preinstallation for rear entertainment system

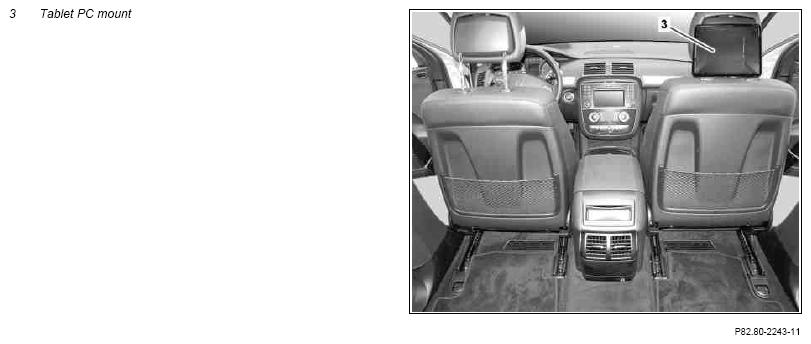

Fig 1: Identifying Tablet PC Mount

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
		The following operation steps are shown on the right side of the vehicle and can be accomplished analogously on the left side of the vehicle. Clarification shall need to be reached with the customer regarding the side of the vehicle on which the Tablet PC mount (3) is to be installed.
1	Detach right front seat		AR91.10-P-1000RT
2	Remove back shell from front seat backrest		AR91.10-P-1915RT
3.1	Detach right front seat head restraint motor	Vehicles with  code (275) Memory package (driver seat, steering column, mirrors) installed on driver seat, Vehicles with  code (242) Electrically adjustable front passenger seat with memory) installed on front passenger seat Do not completely remove the head restraint, simply loosen it.	AR91.29-P-1432RT
3.2	Move right front seat head restraint all the way to the top	Vehicles without  code (275) Memory package (driver seat, steering column, mirrors) installed on driver seat, Vehicles without  code (242) Electrically adjustable front passenger seat with memory) installed on front passenger seat
	Install
4	Retrofit bracket for Tablet PC mount (3)		AZ82.80-P-0003-04GZ
			*BA82.80-P-1001-01A
5	Retrofit Tablet PC control unit mount	Vehicles with  code (275) Memory package (driver seat, steering column, mirrors) installed on driver seat, Vehicles with  code (242) Electrically adjustable front passenger seat with memory) installed on front passenger seat	AZ82.80-P-0003-01GZ
6	Retrofit wiring harness for Tablet PC mount (3)	Vehicles with  code (275) Memory package (driver seat, steering column, mirrors) installed on driver seat, Vehicles with code (242) Electrically adjustable front passenger seat with memory) installed on front passenger seat	AZ82.80-P-0003-02RTA
		Vehicles without  code (275) Memory package (driver seat, steering column, mirrors) installed on driver seat, Vehicles without  code (242) Electrically adjustable front passenger seat with memory) installed on front passenger seat	AZ82.80-P-0003-02RT
7	Retrofit Tablet PC mount (3)		AZ82.80-P-0003-03CW
8	Install remaining parts
9	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Tablet PC mount retrofitted as per AZ82.80-P-0003RT " note to design group 82.
