Remove/install back shell from front seat backrest - AR91.10-P-1915RT

MODEL 251

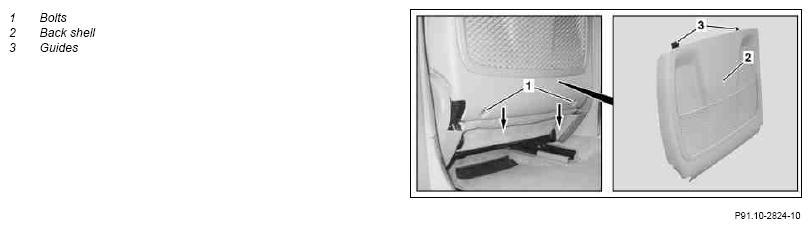

Fig 1: Identifying Front Seat Backrest Back Shell Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Move front seat forward	See Operator's Manual
2	Move front seat backrest forward	See Operator's Manual
3	Unscrew bolts (1)
4	Pull back shell (2) down out of the guides and remove	Carefully remove and install back shell (2), otherwise the guides (3) can be damaged. Push back shell (2) with guides (3) upward.
5	Install in the reverse order
