Retrofit vehicle video system - AZ82.60-P-0004TT

MODEL 211.0 except CODE (450) Taxi version except CODE (979) Special protection version Rear Seat Entertainment System (RSES)

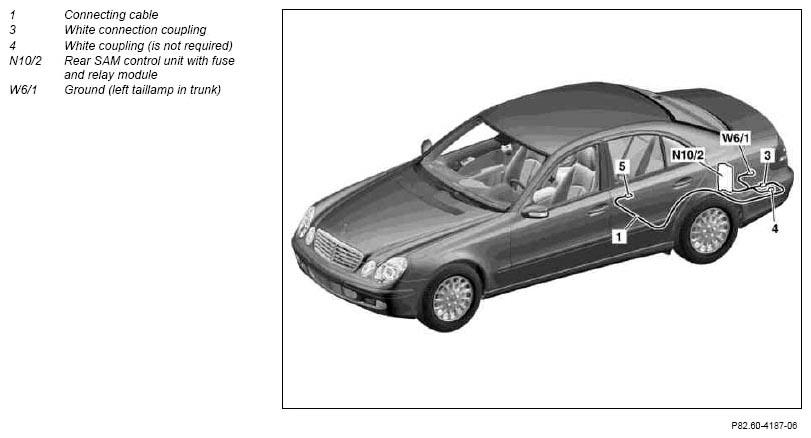

Fig 1: Vehicle Video System Routing Diagram
G07254509Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVING Remove
1 Connect no load current retention unit   *WH58.30-Z-1012-09A
2 Disconnect ground cable of battery
REFER TO TESTING & REPAIR AR54.10-P-0003T
3 Remove rear seat cushion
REFER TO TESTING & REPAIR IMPORTANT Vehicles except CODE (287a) Through-loading feature AR91.12-P-1020T
REFER TO TESTING & REPAIR IMPORTANT Vehicles with CODE (287a) Through-loading feature AR91.12-P-1020TA
4 Remove left rear seat backrest
REFER TO TESTING & REPAIR IMPORTANT Vehicles except CODE (287a) Through-loading feature AR91.12-P-1620T
IMPORTANT Vehicles with CODE (287a) Through-loading feature AR91.12-P-1620TA
5 Remove side paneling in trunk IMPORTANT Left paneling only.
REFER TO TESTING & REPAIR IMPORTANT Vehicles except CODE (287a) Through-loading feature, except CODE (924) Bivalent natural gas drive AR68.30-P-4800T
REFER TO TESTING & REPAIR IMPORTANT Vehicles with CODE (287a) Through-loading feature AR68.30-P-4800TA
REFER TO TESTING & REPAIR IMPORTANT Vehicles with CODE (924) Bivalent natural gas drive AR68.30-P-4800TB
6 Open rear SAM control unit with fuse and relay module
INSTALLING Install
7 Retrofit wiring harness.   AZ82.70-P-0001-04TTT
8 Install Rear Seat Entertainment System (RSES) IMPORTANT See enclosed installation instructions.
9 Connect Rear Seat Entertainment System (RSES) IMPORTANT For function test, see owner's manual.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1012-09A Quiescent current retention unit
PARTS ORDERING NOTES

Part no. Designation Quantity
B6 782 66 02 Basic kit 1
B6 782 6612 Screen 1
B6 782 6605 DVD player including remote control for: Europe, Japan, South Africa and Middle East incl. Egypt 1
B6 782 6604 DVD player including remote control for: Canada, USA and American Territories If necessary
B6 782 6606 DVD player including remote control for: South East Asia and East Asia, incl. Hong Kong If necessary
B6 782 6607 DVD player including remote control for: Australia, New Zealand, Pacific Islands, Central and South America, Caribbean If necessary
B6 782 6608 DVD player including remote control for: former Soviet Union, Indian subcontinent, Africa, North Korea, Mongolia If necessary
B6 782 6609 DVD player including remote control for: China If necessary
B6 788 5150 Cable set accessory SAM/H 1
B6 782 6610 Headphones - passive NoiseGuard If necessary
Commercially available 7.5 Amp fuse If necessary
A002 542 12 19 Relay 1
