Remove/install rear seat cushion - AR91.12-P-1020TA

MODEL 211.0 with CODE (287a) Through-loading feature

Shown on left rear seat cushion

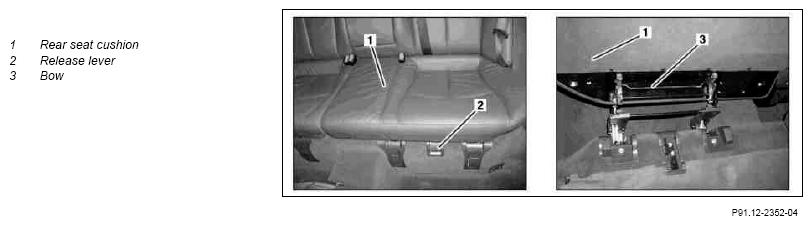

Fig 1: Identifying Rear Seat Cushion Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Move left or right front seats toward front
2	Pull release lever (2) upwards and set rear seat cushion (1) vertical	Installation:  Rear seat cushion (1) must latch into place.
3	Pull on clip (3) and remove rear seat cushion (1)	Installation:  Rear seat cushion (1) must latch into place.
4	Install in the reverse order
