Remove/install rear seat cushion - AR91.12-P-1020T

MODEL 211.0 except CODE (287a) Through-loading feature

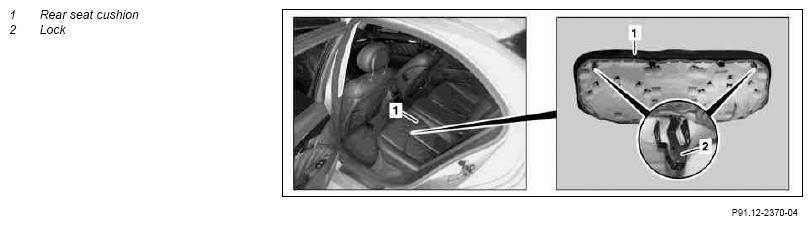

Fig 1: Identifying Rear Seat Cushion & Lock

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Lift rear seat cushion (1) on both sides near the locking mechanism (2)
2	Press locking mechanisms (2)
3	Pull rear seat cushion (1) upwards	Install:  Position rear seat cushion (1) over recess clearances and push downwards.
4	Remove rear seat cushion (1) from vehicle	Carefully remove rear seat cushion (1) from the vehicle to prevent damaging the rear door and the entrance area.
5	Install in the reverse order
