Remove/install lower wishbone - AR33.20-P-0510TW

MODEL 211.08 /28 /09 /29

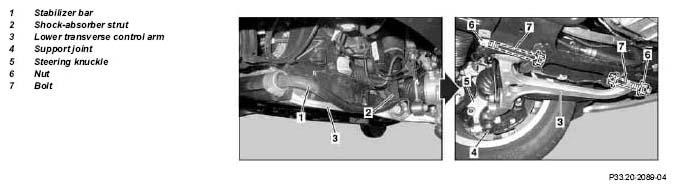

Fig 1: Identifying Lower Wishbone Components

MODIFICATION NOTES

11.12.06

Self-locking nut, upper wishbone follower joint to steering knuckle

Model 211

*BA33.20-P-1018-01A

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by body parts being jammed or crushed. Risk of injury  to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system	Deactivate SBC brake system using STAR DIAGNOSIS.	AS42.46-Z-0001-01A
	When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
	Notes on AIRmatic	Model 211	AH32.22-P-1000-02T
Installation	Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1.1	Empty and fill front suspension strut using STAR DIAGNOSIS	With Airmatic (semi-active air suspension), code 489
2	Remove air filter housing with air ducts	Pull air filter housing vertically upwards off the rubber retainers on the cylinder head covers. Installation:  Rub the rubber retainers on the cylinder head covers and the sealing ring of the hot film mass air flow sensor in the air filter housing with liquid lubricant.
		Model 211.087 /092 /287 /292	AR09.10-P-1150TS
		Lubricant	*BR00.45-Z-1002-06A
3	Attaching engine supporting frame and lifting engine		AR33.10-P-0100-01T
		For engine support frame see GOTIS http://gotis.aftersales.daimlerchrysler.com
4	Remove front wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050Z
5	Detach hexagon collar bolt of front axle shaft	On right or left front axle shaft.	AR33.30-P-0620-05P
		Collar bolt, front axle shaft to front axle shaft flange	*BA33.30-P-1003-02C
6	Detach front axle brake caliper from steering knuckle	Removal  : Hang up brake caliper to one side. The brake hose does not have to be unscrewed from the brake caliper.	AR42.10-P-0070T
7	Pry supporting joint (4) off steering knuckle (5)	After prying off at the supporting joint screw the nut on again, otherwise the steering knuckle may fall down and become damaged. Only unscrew the nut when the steering knuckle is removed.	AR33.20-P-0440-01VM
		Self-locking nut, supporting joint to steering knuckle	*BA33.20-P-1017-01A
		Puller	Figure
		Thrust piece	Figure
8	Press track rod joint out of steering knuckle (5).		AR46.40-P-0200-02IW
		Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1001-01E
		Thrust piece	Figure
		Puller	Figure
9	Pry follower joint of upper transverse control arm off steering knuckle	The follower joint must be removed, otherwise the follower joint is damaged by hard pulling or excessive angles.	AR33.20-P-0500-01VM
		Self-locking nut, upper transverse control arm follower joint to steering knuckle	*BA33.20-P-1018-01A
		Thrust piece	Figure
		Puller	Figure
10	Detach link rod from torsion bar		AR32.20-P-0300-02VM
		Self-locking nut, link rod to torsion bar	*BA32.20-P-1002-02B
11	Move steering knuckle (5) out of supporting joint (4)
12	Remove steering knuckle (5) and move the right front axle shaft or left front axle shaft from the front axle shaft flange	Do not damage the boots of the front axle shaft and supporting joint. To loosen the front axle shaft, if necessary screw in the hexagon collar bolt a few threads again and hammer out the front axle shaft slightly using a rubber hammer.
13	Detach lower engine compartment paneling		AR61.20-P-1105T
14	Remove torsion bar (1) on front axle		AR32.20-P-0300TW
15	Loosen front shock-absorber strut (2) on lower transverse control arm (3) and secure		AR33.20-P-0500-06VM
		Nut, shock-absorber strut to lower transverse control arm	*BA32.25-P-1012-04B
16	Detach lower transverse control arm (3) from front axle carrier	The bolt (7) must not  be twisted. It is essential to counterhold the bolt (7) when loosening the nut (6). Otherwise, when the repair kit is fitted, the fixing lugs for camber adjustment and caster adjustment in the rubber mount are sheared off.
		Self-locking nut, lower wishbone to front axle carrier	*BA33.20-P-1010-01A
17	Install in the reverse order
18	Perform a wheel alignment check		AR40.20-P-0200T

FRONT AXLE SHAFT

Number	Designation			Model 211.08/09/28/29
BA33.30-P-1003-02C	Collar bolt, front axle shaft to front axle shaft flange	Stage 1	Nm	70
		Stage 2	∠°	90

WHEEL LOCATION, HUB

Number	Designation			Model 211.08/0 9/28/29
BA33.20-P-1010-01A	Self-locking nut, lower wishbone to front axle carrier		Nm	110
BA33.20-P-1017-01A	Self-locking nut, supporting joint to steering knuckle	Stage 1	Nm	70
		Stage 2	∠°	50
BA33.20-P-1018-01A	Self-locking nut, upper wishbone follower joint to steering knuckle	Stage 1	Nm	20
		Stage 2	∠°	90

TIE ROD

Number	Designation			Model 211.08/09/ 28/29
BA46.40-P-1001-01E	Self-locking nut, tie rod to steering knuckle	Stage 1	Nm	55
		Stage 2	∠°	-

STRUTS

Number	Designation		Model 211.08/09/28/29
BA32.25-P-1012-04B	Nut of shock-absorber strut to transverse control arm	Nm	162

FRONT AXLE STABILIZER BAR

Number	Designation			Model 211.08/09/28/29
BA32.20-P-1002-02B	Self-locking nut of connecting rod to torsion bar	M10	Nm	-
		M10X1.5	Nm	-
		M12X1.5	Nm	95
		M14X1.5	Nm	-

Fig 2: Identifying Thrust Piece (140 589 00 63 00)

Fig 3: Identifying Puller (203 589 00 33 00)

Fig 4: Identifying Thrust Washer M 10X1.5 (210 589 04 63 00)

Fig 5: Identifying Puller (124 589 02 33 00)

Fig 6: Identifying Puller (202 589 02 33 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricant	A 000 989 01 60
