Replace radial sealing rings on side of rear axle center assembly - AR35.31-P-0545TX

Rear axle differential dia. 198 in MODEL 219.356 up to 31.5.06

Rear axle differential dia. 200 in MODEL 219.354, 219.356 as of 1.6.06, 219.357

Rear axle differential dia. 215 in MODEL 219.322/372/375/376/377

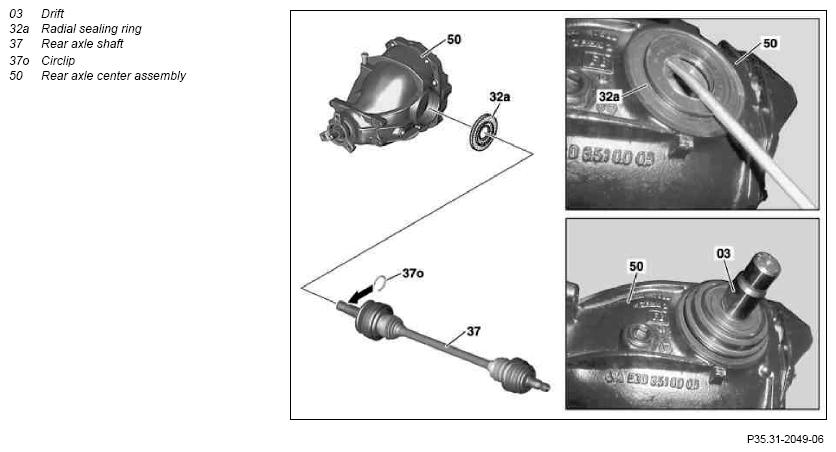

Fig 1: Identifying Rear Axle Center Assembly Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Secure vehicle on the lifting platform		AR00.60-P-0100TX
2	Remove rear-axle shaft (37)	While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.	AR35.30-P-0620TX
3	Lever radial sealing ring (32a) out of rear axle differential (50) using a suitable tool	To ensure leaktightness and proper seating, do not damage the seat surface of the radial sealing ring (32a).	AR35.31-P-0540-05T
	Install
4	Using a drift (03) press a new radial sealing ring (32a) into the rear axle center assembly (50)	Coat lip of radial sealing ring (32a) with universal hypoid gear oil. Rear axle center assembly dia. 198 mm:
		Rear axle differential dia. 200 mm:	Fig 4
			Fig 4
		Rear axle center assembly dia. 215 mm:	Fig 3
			Fig 2
	Universal hypoid gear oils (SAE 85 W-90)	Sheet 235.7	Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
5	Install new circlip (37o) on inner splined shaft of rear axle shaft (37)
6	Install rear axle shaft (37).	While working on the rear axle care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.	AR35.30-P-0620TX
	Check
7	Check oil level in rear axle center assembly (50) and correct if necessary	In order to avoid damage to the rear axle center assembly (50), it is absolutely essential to follow the work procedure and the Specifications for Operating Fluids. In the interest of better fuel economy, avoid mixing old universal hypoid gear oil with new FE hypoid gear oil.	AR35.31-P-0520-03TX
			*BA35.31-P-1002-02D
			*BF35.31-P-1003-01P
			*BF35.31-P-1004-01P
			*BF35.31-P-1005-01P
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
		Omnifit sealing compound 100H (50 g)	*BR00.45-Z-1061-01A
8	Check rear axle differential (50) for leaks	Carry out visual inspection.
9	Lower vehicle		AR00.60-P-0100TX

Fig 2: Identifying Drift (211 589 05 15 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Sleeve (203 589 01 14 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Drift (140 589 10 15 00)

Courtesy of MERCEDES-BENZ USA
