Remove/install rear axle shaft - AR35.30-P-0620TX

MODEL 219.356 up to 31.5.06 Rear axle differential 198 FE

MODEL 219.354, 219.356 as of 1.6.06, 219.357 rear axle differential 200 FE

MODEL 219.322/372/375/376/377 Rear axle differential 215 FE

Shown on rear axle with steel suspension

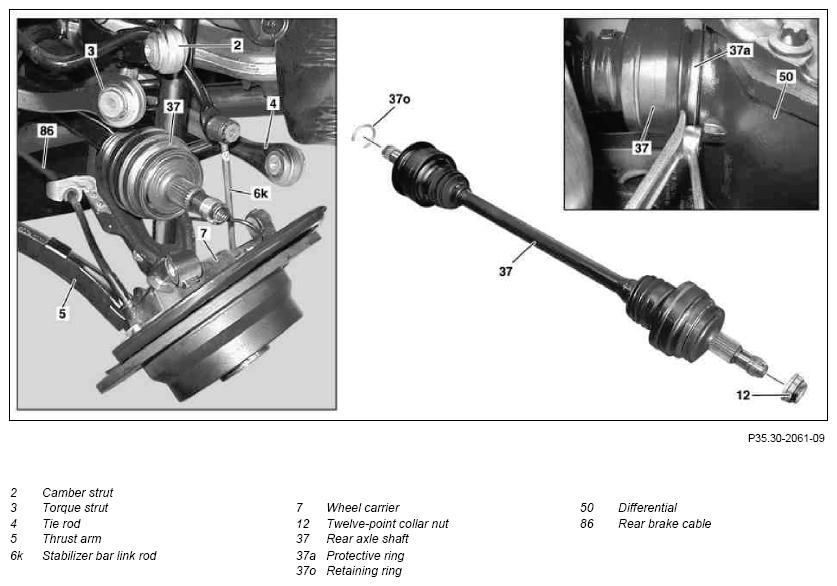

Fig 1: Identifying Rear Axle Shaft Remove/Install Components - Shown On Rear Axle With Steel Suspension

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by body parts being jammed or crushed. Risk of injury to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system	Deactivate SBC brake system using STAR DIAGNOSIS.	AS42.46-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Deactivate SBC brake system using STAR DIAGNOSIS.	Vehicles with Sensotronic Brake Control (SBC) The following steps should be run through in STAR DIAGNOSIS: Select menu item "SBC Sensotronic Brake Control"/"Deactivate 'SBC' system". Then process all the individual steps from top to bottom.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Secure vehicle on the lifting platform		AR00.60-P-0100TX
3	Empty rear springs completely using STAR DIAGNOSIS	Vehicles with AIRmatic (semi-active air suspension), code 489	AR32.22-P-1500-04TX
	Notes on AIRmatic		AH32.22-P-1000-02T
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		The filling process for the air springs must be observed, otherwise the air springs will be irreparably damaged.	AR32.22-P-1500-03TX
			*BA32.25-P-1006-04K
			*BA32.25-P-1007-04K
			Figure
			Fig 4
		Electronic inclinometer	Fig 5
4	Unscrew twelve-point collar nut (12) from rear axle shaft (37)	To prevent wheel bearing damage the vehicle must no longer be moved on its wheels when the twelve-point collar nut (12) has been loosened. Replace twelve-point collar nut (12), tighten and secure.	AR35.30-P-0115-01TX
4			*BA35.30-P-1001-01F
5	Remove rear wheel
	Remove/install wheels, rotate if necessary		AP40.10-P-4050TX
6	Remove rear brake pads	Fasten brake caliper to a suitable point in the wheel housing with a hook to relieve stress on the brake hose and secure it to prevent it from falling. Brake hose may otherwise be damaged.
		Model 219.322/354/356/357/372/375	AR42.10-P-1700TX
		Model 219.376/377	AR42.10-P-1700TZ
7	Detach rear brake cable (86) at cable slack adjuster on parking brake		AR42.20-P-0525TX
8	Detach stabilizer bar link rod (6k) from wheel carrier (7)		*BA32.20-P-1001-04J
9	Lift wheel carrier (7) using transmission jack and transmission platform	The rear axle shaft (37) must be approximately horizontal. Tighten threaded connections of torque strut (3), camber strut (2), thrust arm (5) and tie rod (4).
			*BA35.20-P-1002-03E
			*BA35.20-P-1002-02E
			*BA35.20-P-1002-05E
			*BA35.20-P-1001-04E
10	Detach torque strut (3) from wheel carrier (7)	Bolt on torque strut (3) loosely.
11	Detach camber strut (2) from wheel carrier (7)	Bolt on camber strut (2) loosely.
12	Detach tie rod (4) from wheel carrier (7)	Bolt on tie rod (4) loosely.
13	Detach thrust arm (5) from wheel carrier (7)	Bolt on thrust arm (5) loosely.
14	Lower transmission jack	Lift wheel carrier (7) with transmission jack and transmission platform until the rear axle shaft (37) is approximately horizontal.
15	Fold down wheel carrier (7) and pull rear axle shaft (37) out of rear axle shaft flange	Do not overstretch the rear brake cable (86) to avoid any damage. Hook the rear axle shaft (37) up to avoid damaging the rubber boot of the rear axle shaft (37). If the rear axle shaft (37) is difficult to remove: ↓
		Pull out/press in rear axle shaft (37) at rear axle shaft flange.	AR35.30-P-0115-03TX
			Figure
			Figure
16	Pull rear axle shaft (37) out of the rear axle center assembly (50)	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced. Do not damage protective ring (37a). Align twisted protective ring (37a) before installing rear axle shaft (37) to prevent grinding noises while driving. Do not damage radial sealing ring in rear axle center assembly (50) in order to prevent leakage. Install new retaining ring (37o) on inner splined profile.	AR35.30-P-0620-02TX
17	Lower differential (50)	Vehicles with code (489) AIRmatic (semi-active air suspension) and balance mass on rear axle shaft (37) Detach the additional volume reservoir only on the affected side.
	Checking
18	Check constant velocity joints and rubber boots for leaks and damage	If the constant velocity joint is defective, the rear axle shaft (37) must be completely replaced. If damaged or leaking: ↓
18		Replace constant velocity joint or rubber boot on rear axle shaft.	AR35.30-P-0661P
19	Check condition of radial sealing ring in side of rear axle center assembly (50)	If damaged or leaking: ↓
19		Replace radial sealing rings on side of differential (50).	AR35.31-P-0545TX
20	Install in the reverse order
21	Check oil level in rear axle differential (50) and correct if necessary.	In order to avoid damage to the rear axle center assembly (50), it is absolutely essential to follow the work procedure and the Specifications for Operating Fluids. In the interest of better fuel economy, avoid mixing old universal hypoid gear oil with new FE hypoid gear oil.	AR35.31-P-0520-03TX
			*BA35.31-P-1002-02D
			*BF35.31-P-1003-01P
			*BF35.31-P-1004-01P
			*BF35.31-P-1005-01P
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
		Omnifit sealing compound 100H (50 g)	*BR00.45-Z-1061-01A
22.1	Activate SBC brake system using STAR DIAGNOSIS	Vehicles with Sensotronic Brake Control (SBC) The following steps should be run through in STAR DIAGNOSIS: Select "Initial startup after repair"/"Remove/install brake pads" menu item. Then process all the individual steps from top to bottom.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
	Connect STAR DIAGNOSIS and read out fault memory	STAR DIAGNOSIS, diagnosis system
	Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work	Before starting engine, actuate brake pedal several times until the pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
22.2	Press the brake pedal several times until the brake pads contact the brake disks	Vehicles with Adaptive Brake (ABR) Firm resistance should be noticeable at the brake pedal.
23	Perform wheel alignment check		AR40.20-P-0200TX

REAR AXLE STABILIZER BAR

Number	Designation		Model 219
BA32.20-P-1001-04J	Nut, link rod to wheel carrier	Nm	50

SUSPENSION STRUTS

Number	Designation		Model 219 with AIRmatic
BA32.25-P-1006-04K	Nut, rear air spring at spring control arm	Nm	150
BA32.25-P-1007-04K	Air suspension pressure line at rear axle distributor	Nm	5

REAR AXLE SHAFT

Number	Designation				Model 219
BA35.30-P-1001-01F	Collar nut, rear axle shaft to rear axle shaft flange	self-locking		Nm	350
		not self-locking	Stage 1	Nm	170
		not self-locking	Stage 2	∠°	45

CAMBER STRUT

Number	Designation					Model 219
BA35.20-P-1002-02E	Self-locking nut, camber strut to wheel carrier.	Aluminum	M12	Stage 1	Nm	50
		Aluminum	M12	Stage 2	∠°	90
		Steel	M14	Stage 1	Nm	80
		Steel	M14	Stage 2	∠°	90

TORQUE STRUT

Number	Designation					Model 219
BA35.20-P-1002-03E	Self-locking nut, torque strut to wheel carrier	Aluminum	M12	Stage 1	Nm	50
				Stage 2	∠°	90
		Steel	M14	Stage 1	Nm	80
				Stage 2	∠°	90

TIE ROD

Number	Designation			Model 219
BA35.20-P-1001-04E	Self-locking nut, tie rod at wheel carrier	Stage 1	Nm	40
BA35.20-P-1001-04E	Self-locking nut, tie rod at wheel carrier	Stage 2	∠°	90

TORQUE STRUT

Number	Designation					Model 219
BA35.20-P-1002-05E	Self-locking nut, thrust arm to wheel carrier	Aluminum	M12	Stage 1	Nm	50
		Aluminum	M12	Stage 2	∠°	90
		Steel	M14	Stage 1	Nm	80
		Steel	M14	Stage 2	∠°	90

DIFFERENTIAL HOUSING

Number	Designation		Model 219
BA35.31-P-1002-02D	Oil filler screw, differential	Nm	50

DIFFERENTIAL

Number	Designation			Model 219 except 219.376/377	Model 219.376/377
BF35.31-P-1003-01P	Filling capacity	Differential Ø 215 mm	Liters	1.2	1.2
BF35.31-P-1003-01P	Filling capacity	Specifications for Operating Fluids	-	Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85	Hypoid gear oils (Specification 235.61). MB 235.61 AMG hypoid gear oil A 001 989 52 03 10
BF35.31-P-1004-01P	Filling capacity	Rear axle differential dia. 198 mm	Liters	1.1	-
BF35.31-P-1004-01P	Filling capacity	Specifications for Operating Fluids	-	Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85	-
BF35.31-P-1005-01P	Filling capacity	Rear axle center assembly dia. 200 mm	Liters	1.1	-
BF35.31-P-1005-01P	Filling capacity	Specifications for Operating Fluids	-	Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85	-

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Torque Wrench (001 589 86 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Box Wrench Bit (001 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Wrench Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
