Secure vehicle on vehicle lift - AR00.60-P-0100TX

MODEL 219, 231

Illustrated on model 219

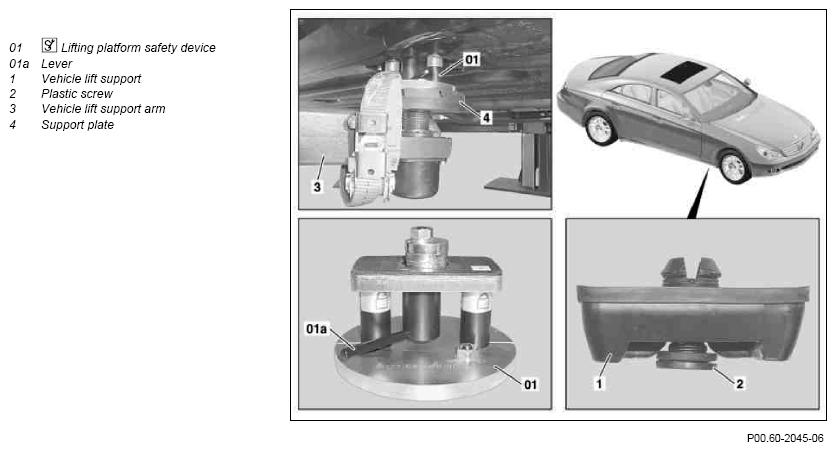

Fig 1: Identifying Vehicle Lift Safety Device, Lever, Vehicle Lift Support, Plastic Screw And Support Plate

Courtesy of MERCEDES-BENZ USA

	Mount/dismantle
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	The locking devices must always be mounted in pairs, i.e. at two positions in the vehicle's longitudinal members. They can both be mounted at the front, at the back or on one side
1	Remove plastic screws (2) of lifting platform supports (1)
2	Pry vehicle lift supports (1) out of longitudinal members
3	Insert vehicle lift safety devices (01) into longitudinal members		Fig 2
4	Swivel lever (01a) of lifting platform safety devices (01) to the right	This causes the vehicle lift safety devices to engage on the longitudinal members.
5	Adjust support plates (4) of vehicle lift support arms (3) to height of vehicle life safety devices (01)	Rotate support plates until they make contact with the vehicle lift safety devices or the vehicle lift supports (1) of the longitudinal members.
6	Raise vehicle with vehicle lift		AR00.60-P-1000TX
7	Secure vehicle lift safety devices (01) with tensioning straps at vehicle lift support arms
8	Dismantle in reverse order.

Fig 2: Identifying Vehicle Lift Safety Device (171 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
