Install new radial sealing ring on outside right of front axle gear - AR33.30-P-0540P

MODEL 203.081 /084 /087 /092 /281 /284 /287 /292

MODEL 220.083 /084 /087 /183 /184 /187

Shown on model 203

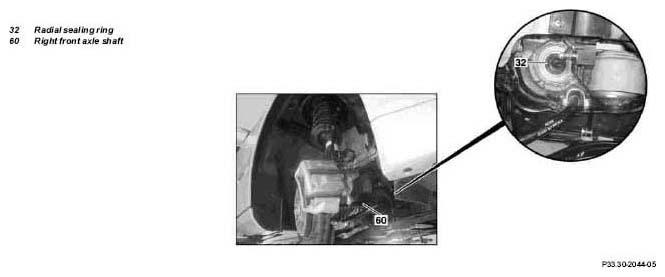

Fig 1: Identifying Radial Sealing Ring And Right Front Axle Shaft - Shown On Model 203

MODIFICATION NOTES

1.8.03	Model 203 special tool replaces	Step 1	AR33.30-P-0540-01P
1.8.03	Model 220 new special tool incorporated	Step 1	AR33.30-P-0540-01I

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove right front axle shaft (60)	Model 203	AR33.30-P-0620P
		Model 220	AR33.30-P-0620I
2	Replace radial seal (32)	Coat sealing lip of radial seal with universal hypoid gear oil:
		Model 203	AR33.30-P-0540-01P
	Universal hypoid gear oils (SAE 85 W-90)		BB00.40-P-0235-07A
		Counter-Support	Figure
		Internal extractor	Figure
		Drift	Figure
		Model 220	AR33.30-P-0540-01I
	Universal hypoid gear oils (SAE 85 W-90)		BB00.40-P-0235-07A
		Counter-Support	Figure
		Internal extractor	Figure
		Drift	Figure
3	Install in the reverse order
4	Check front axle gear oil level, correct if necessary		AR33.30-P-0525-02P
			*BF33.30-P-1001-03C
			*BA33.30-P-1006-03D

FRONT FINAL-DRIVE UNIT

Number	Designation		Model 203.08/09/28/29	Model 220.08/18
BA33.30-P-1006-03D	Oil filler opening screw plug	Nm	30	30

FRONT AXLE GEAR

Number	Designation			Model 203.08/09/28/29	Model 220.08/18
BF33.30-P-1001-03C	Hypoid gear oil	Filling capacity	Liters	0,46	0.6
BF33.30-P-1001-03C	Hypoid gear oil	Specifications for Operating Fluids	Sheet	BB00.40-P-0235-07A	BB00.40-P-0235-07A

Fig 2: Identifying Counter Stay (000 589 33 33 00)

Fig 3: Identifying Internal Puller (203 589 03 33 00)

Fig 4: Identifying Drift (210 589 01 15 00)
