Check front axle gear oil level and top up if necessary - AR33.30-P-0525-02P
FRONT FINAL-DRIVE UNIT
| Number |
Designation |
Model 203.08/09/28/29 |
Model 211.080/09/28/29 |
Model 220.08/18 |
| BA33.30-P-1006-03D |
Oil filler opening screw plug |
Nm |
30 |
30 |
30 |
FRONT AXLE GEAR
| Number |
Designation |
Model 203.08/09/28/29 |
Model 211.08/09/28/29 |
| BF33.30-P-1001-03C |
Hypoid gear oil |
Filling capacity |
Liters |
0.46 |
0.6 |
| Specifications for Operating Fluids |
Sheet |
BB00.40-P-0235-07A |
BB00.40-P-0235-07A |
FRONT AXLE GEAR
| Number |
Designation |
Model 220.08/18 |
| BF33.30-P-1001-03C |
Hypoid gear oil |
Filling capacity |
Liters |
0.6 |
| Specifications for Operating Fluids |
Sheet |
BB00.40-P-0235-07A |
Conduct oil level check only in installation position and at room temperature. Not when front axle gear is at normal operating temperature.
- Unscrew screw plug of oil filler opening (7).
The oil level is correct if the hypoid gear oil reaches up to the lower edge of the oil filler opening.
- If necessary refill hypoid gear oil through the oil filler opening, until oil flows out of the oil filler opening.
- Let oil escape for roughly 1 to 2 min and then turn in the screw plug of the oil filler opening (7) and tighten
.
Replace sealing ring of screw plug of oil filler opening (7).

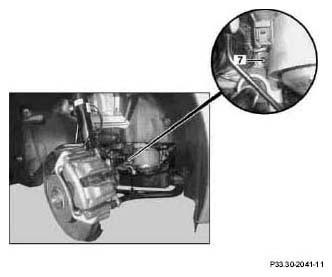

Shown on model 203
