Remove/install compressor - AR09.50-P-4705QK

ENGINE 271.940 in MODEL 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODEL 211.042 /242

ENGINE 271.946 in MODEL 203.046 /246 /746

ENGINE 271.948 in MODEL 203.040 /740

ENGINE 271.942 in MODEL 209.343, 203.043 /243 /743

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODEL 209.341 /441

ENGINE 271.956 in MODEL 211.041 /241

Shown on model 209

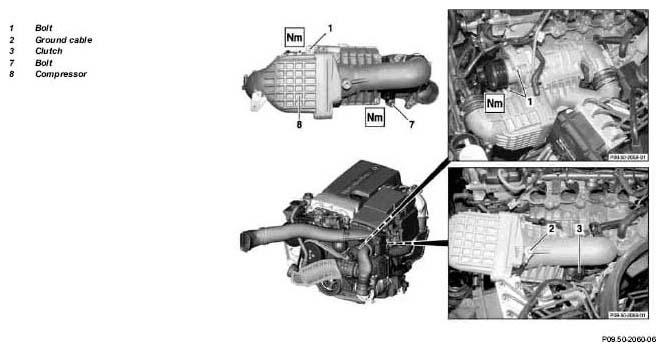

Fig 1: Identifying Compressor Remove/Install Components - Shown On Model 209 (1 Of 2)
G04732143

Shown on model 209

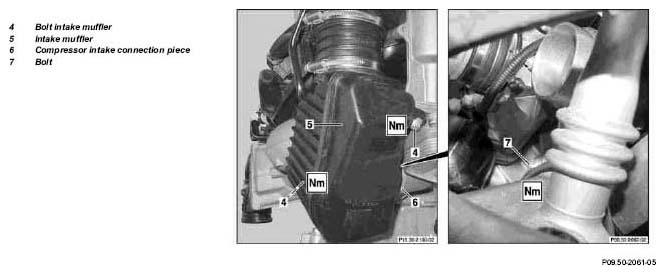

Fig 2: Identifying Compressor Remove/Install Components - Shown On Model 209 (2 Of 2)
G04732144
MODIFICATION NOTES

16.5.06 "Disconnect/connect battery ground line" removed
REMOVINGINSTALLING Remove/install
1 Open engine hood Model 203 AR88.40-P-1000P
    Model 209 AR88.40-P-1000Q
    Model 211 AR88.40-P-1000T
2 Remove air filter housing   AR09.10-P-1150Q
3 Remove intake manifold Model 203.040 /042 /046 /242 /246 /730 /740 /742/ 746 AR09.20-P-1310QK
    Model 209.341 /342 /441 /442
Model 211.241/ 242
Model 211.041/ 042 without bivalent natural gas drive
    Model 211.041/ 042 with bivalent natural gas drive, code 924 AR09.20-P-1310TN
    Model 203.043/ 243/ 743 AR09.20-P-1310Q
    Type 209.343
4 Slacken poly V-belt of basic drive IMPORTANT For this step swing Torx recess clearance next to tensioning pulley anti-clockwise.
    See Remove/install poly-V-belt. AR13.22-P-1202QK
5 Unscrew upper bolts (1) from compressor (8) TORQUE SPECIFICATION *BA09.50-P-1001-01C
6 Slacken ground cable (2) at compressor (8)
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
7 Remove engine compartment paneling Model 203, 209 AR61.20-P-1105P
    Model 211 AR61.20-P-1105T
8 Remove screws (4) on intake muffler (5) TORQUE SPECIFICATION Intake muffler to supercharger *BA09.50-P-1004-01C
    TORQUE SPECIFICATION Bolt of intake muffler to oil filter housing *BA09.50-P-1006-01C
9 Pry off intake muffler (5) IMPORTANT Detach intake muffler (5) from compressor intake fitting (6) by hand and lift upwards and out.
10 Unscrew bottom bolt (7) of compressor (8) TORQUE SPECIFICATION *BA09.50-P-1002-01C
11 Slacken clutch (3) IMPORTANT For this step remove compressor (8) from crankcase, rotate around 180° and remove clutch (3)
12 Remove compressor (8)
13 Detach intake and pressure connection from compressor (8) When replacing the compressor (8) AR09.50-P-8841QK
14 Detach air recirculation flap from compressor (8) When replacing the compressor (8) AR09.50-P-8843QK
15 Install in the reverse order
16 Read out fault memory and erase IMPORTANT Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
TORQUE SPECIFICATION SUPERCHARGER

Number Designation Engine 271
BA09.50-P-1001-01C Bolt of supercharger to timing case M8 Nm 20
BA09.50-P-1002-01C Bolt of supercharger to engine support M8 Nm 20
BA09.50-P-1004-01C Intake muffler to supercharger M6 Nm 9
BA09.50-P-1006-01C Bolt of intake muffler to oil filter housing M6 Nm 11
