Remove/install air recirculation flap actuator - AR09.50-P-8843QK

ENGINE 271.940 in MODEL 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODEL 211.042 /242

ENGINE 271.946 in MODEL 203.046 /746 /246

ENGINE 271.948 in MODEL 203.040 /740

ENGINE 271.942 in MODEL 209.343, 203.043 /243 /743

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODEL 209.341 /441

ENGINE 271.956 in MODEL 211.041 /241

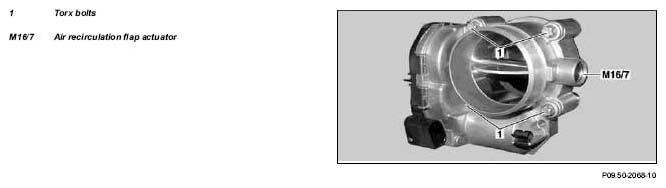

Fig 1: Identifying Air Recirculation Flap Actuator Remove/Install Components

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
2	Remove compressor		AR09.50-P-4705QK
3	Remove pressure muffler
4	Unscrew Torx bolts (1)		*BA09.50-P-1009-01C
5	Remove recirculated air flap actuator (M16/7)
6	Install in the reverse order
