Remove/install intake and pressure connection from compressor - AR09.50-P-8841QK

ENGINE 271.940 in MODEL 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODEL 211.042 /242

ENGINE 271.946 in MODEL 203.046 /246 /746

ENGINE 271.948 in MODEL 203.040 /740

ENGINE 271.942 in MODEL 209.343, 203.043 /243 /743

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODEL 209.341 /441

ENGINE 271.956 in MODEL 211.041 /241

Shown on model 209 with engine 271

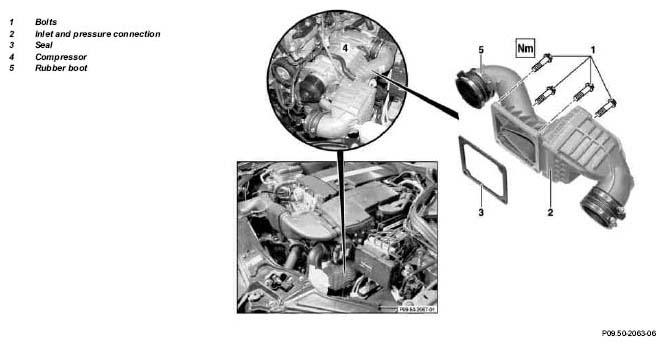

Fig 1: Identifying Intake And Pressure Connection From Compressor Remove/Install Components

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
2	Remove air filter housing		AR09.10-P-1150Q
3	Remove intake manifold	Remove intake manifold complete with throttle valve actuator.
		Model 211.041/ 042 with bivalent natural gas drive, code 924	AR09.20-P-1310TN
		Model 203.040 /042 /046 /242 /246 /730 /740 /742/ 746	AR09.20-P-1310QK
		Model 209.341 /342 /441 /442 Model 211.241/ 242 Model 211.041/ 042 without bivalent natural gas drive
		Model 203.043/ 243/ 743	AR09.20-P-1310Q
		Type 209.343
4	Slacken poly V-belt of basic drive	For this step swing Torx recess clearance next to tensioning pulley anti-clockwise.
		See Remove/install poly-V-belt.	AR13.22-P-1202QK
5	Remove compressor (4)		AR09.50-P-4705QK
6	Release rubber boot (5) of intake and pressure connection (2) from compressor (4)
7	Unscrew bolts (1) at intake and pressure connection (2)		*BA09.50-P-1004-01C
8	Remove intake and pressure connection (2)	Close openings of compressor (4), in order to exclude contaminations. Installation:  Replace seal (3).
9	Install in the reverse order

SUPERCHARGER
