Remove/install vacuum pump - AR43.05-P-1320QB
MODEL 203.052 /252 /752 with ENGINE 272.920 with TRANSMISSION 722.9
MODEL 203.054 /254, 209.354 /454 with ENGINE 272.940 with TRANSMISSION 722.9
| Remove/install | |||
| 1 | Open engine hood | Model 203 | AR88.40-P-1000P |
| Model 209 | AR88.40-P-1000Q | ||
| 2 | Remove air filter housing | AR09.10-P-1150QB | |
| 3 | Remove hot film mass air flow sensor | AR07.07-P-1453QB | |
| 4 | Remove air duct housing | AR09.20-P-0080QB | |

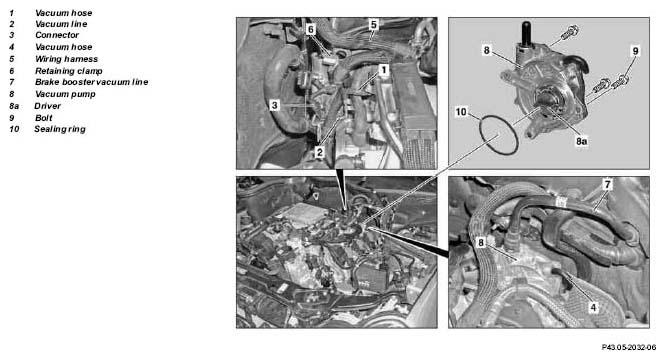

| 5 | Detach vacuum hose (1) from vacuum line (2) | ||
| 6 | Unscrew vacuum line (2) from resonance intake manifold | *BA43.05-P-1002-01A | |
| 7 | Detach plug (3) from heating system shutoff valve | ||
| 8 | Detach vacuum hose (4) from vacuum line (2) | ||
| 9 | Remove electrical wiring harness (5) from retaining clamp (6) | ||
| 10 | Detach retaining clamp (6) | ||
| 11 | Remove the vacuum line (7) from the vacuum pump (8) | See ↓ | |
| Remove/install vacuum line of brake booster. | AR43.10-P-0355QB | ||
| 12 | Remove bolts (9) | *BA43.05-P-1001-01A | |
| 13 | Detach vacuum pump (8) backwards from cylinder head and remove | ||
| 14 | Install in the reverse order |
| Number | Designation | Model 203, 209 with engine 272 | |
|---|---|---|---|
| BA43.05-P-1001-01A | Bolt, vacuum pump to cylinder head | Nm | 9 |
| BA43.05-P-1002-01A | Bolt, vacuum line to resonance intake manifold | Nm | 7 |
