Remove/install brake booster vacuum line - AR43.10-P-0355QB
MODEL 203, 209 with ENGINE 272
MODEL 209 with ENGINE 273

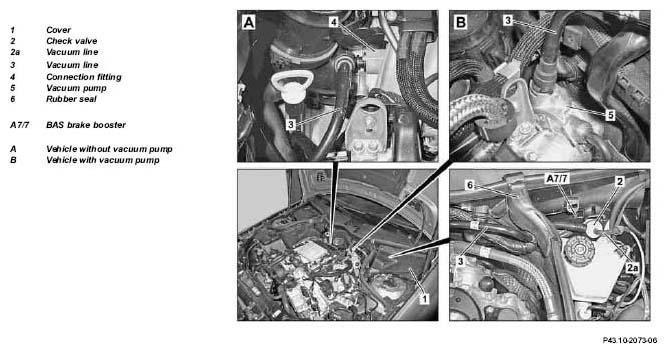

Shown on model 203
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Eliminate vacuum in BAS brake booster (A7/7) | ||
| 3 | Open engine hood and raise to vertical position | Model 203 | AR88.40-P-1000P |
| Model 209 | AR88.40-P-1000Q | ||
| 4 | Remove air filter housing | AR09.10-P-1150QB | |
| 5 | Remove cover (1) | ||
| 6 | Pull check valve (2) out of BAS brake booster (A7/7) | ||
| 7 | Detach vacuum line (2a) from check valve (2) | ||
| 8.1 | Detach vacuum line (3) from connection fitting (4) of resonance intake manifold | On vehicles without vacuum pump (A) | |
| 8.2 | Remove the vacuum line (3) from the vacuum pump (5) | On vehicles with vacuum pump (B) | |
| 9 | Detach rubber seal (6) from partition wall | ||
| 10 | Pull vacuum line (3) with plastic cover out of partition wall | ||
| 11 | Remove the vacuum line (3) | ||
| 12 | Install in the reverse order | ||
| 13 | Perform leak check |
