Retrofitting trunk lid emergency release - AZ88.50-P-0002PD
MODEL 203.0 with CODE (491) U.S. version
The electric trunk lid emergency release does not operate when:
|
If battery is removed/disconnected (e.g.: vehicle taken out of service temporarily) it is necessary to take off the striker eye. | ||
| The function "Lock trunk lid separately" (90° position of trunk lid lock) is no longer present after the trunk lid emergency release is installed. | |||
| Check trunk lid remote opening feature for proper operation | |||
| On vehicles as of end no. F059 804 it is only necessary to install the trunk interior pushbutton and deactivate the 90° position trunk lid lock | |||
| Removing | |||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003P | |||
| 2 | Remove trunk lid paneling and cable duct | ||

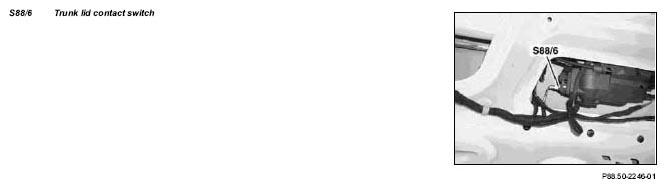

| 3 | Remove trunk lid contact switch (S88/6) at trunk lid lock and tie back connector with electric cable | ||
| 4 | Remove paneling of trunk floor and side paneling on left in trunk | ||
| Remove paneling in trunk | AR68.30-P-4600P | ||
| 5 | Check rear SAM control module with fuse and relay module | ET no. A 203 545 07 01 or ET no. A 002 545 97 01 (SW26/00, Q11 status) is not fitted ↓ |
|
| Replace rear SAM control module with fuse and relay module | AR54.21-P-1259P | ||
| Installation | |||
| 6 | Retrofitting trunk lid emergency release wiring harness | AZ88.50-P-0002-05PD | |

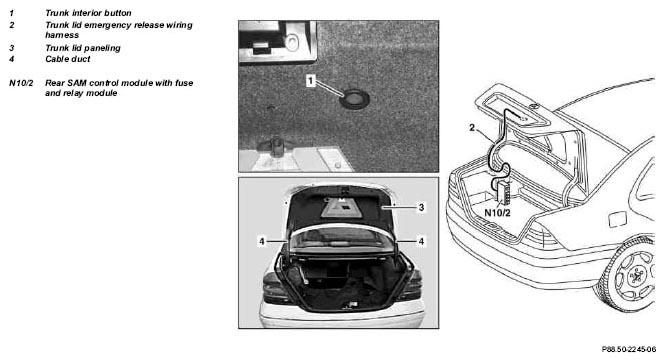

| Figure | |||
| 7 | Retrofitting trunk interior button | AZ88.50-P-0002-06PD | |
| 8 | Enter fuse assignment in fuse assignment plan | ||
| 9 | Fit remaining parts to vehicle | ||
| 10 | Carry out operational check | ||
| Notes on electric trunk lid emergency release | Models 129, 202, 203, 208, 210, 215, 220 | AH88.50-P-0001-01A | |
| 11 | Place insert sheet for trunk lid emergency release in Owner's Manual |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| A 203 821 35 58 | Switch | 1 |
| A 203 540 34 13 | Wiring harness | 1 |
| A 002 546 74 40 | Cut/clamp (SKT) connector | 3 |
| A 203 545 07 01 | Fuse socket (rear SAM control module with fuse and relay module) | 1 |
| 6515955813 | Insert sheet for Owner's Manual, electric kit (can be ordered from printshop Storopack, Hotline telephone number: +49-7123/64242) | 1 |
