Retrofitting trunk interior button - AZ88.50-P-0002-06PD

Mark cutout on paneling as shown in drawing.
Cut out paneling.

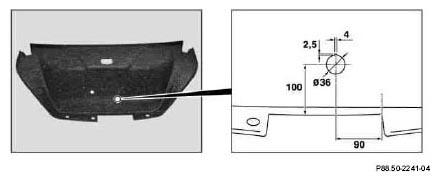

Fig 1: Identifying Cutout Marking On Paneling Diagram
Install trunk interior button (1) in trunk lid paneling from front and fasten from rear with retaining ring.
Ensure that seat is correct (collar on trunk interior button (1) should make contact with paneling around entire circumference).

Fig 2: Identifying Trunk Interior Button And Retaining Ring
