Central locking control with mechanical key, function - GF80.20-P-2004PP

MODEL 203.0/ 2/ 7

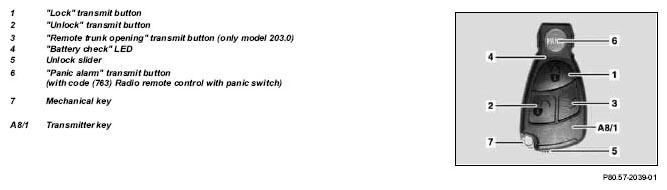

Fig 1: Identifying Central Locking Control With Mechanical Key Components

The mechanical key (7) can be removed from the transmitter key (A8/1) after the unlocking slider (5) is actuated. When the driver's door, the trunk lid (only model 203.0), the rear door (only model 203.2) or the tailgate (only model 203.7) are unlocked with the mechanical key (7) only the corresponding lock is actuated mechanically.

The anti-theft alarm (ATA) (on vehicles with code (551a) anti-theft alarm (ATA)) is not disarmed. The triggered alarm can be terminated by inserting the transmitter key (A8/1) into the EIS control unit or by actuating the "Lock" transmit button (1) or the "Unlock" transmit button (2).
