Remove/install engine support - AR22.10-P-1200R
ENGINE 113.963 in MODEL 230.475
ENGINE 113.992 in MODEL 230.474
ENGINE 113.990 in MODEL 211.076 /276
ENGINE 113.991 in MODEL 215.374, 220.074
ENGINE 112.973 in MODEL 230.467
ENGINE 113.995 in MODEL 230.472
| Remove/install | |||
| Risk of explosion
caused by oxyhydrogen gas. Risk of poisoning and caustic burns
caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries |
No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |

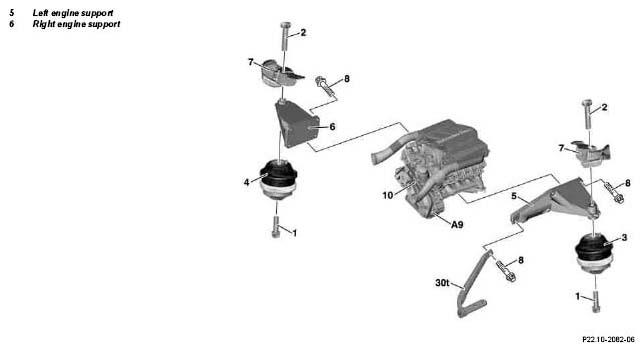

| 1 | Remove engine support | Left engine support | AR22.10-P-4350R |
| Right engine support | AR22.10-P-4340R | ||
| *BA22.10-P-1005-01L | |||
| *BA22.10-P-1005-01X | |||
| 2 | Install in the reverse order |
| Number | Designation | Engine 113.990 in model 211 | Engine 113.991 in model 215/220 | ||
|---|---|---|---|---|---|
| BA22.10-P-1005-01L | Bolt of engine support to crankcase | Stage 1 | Nm | 20 | 20 |
| Stage 2 | ∠ ° | 90 | 90 | ||
| Number | Designation | Engine 112, 113 in model 230 | ||
|---|---|---|---|---|
| BA22.10-P-1005-01X | Bolt of engine support to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠ ° | 90 | ||
