Remove, install right engine support - AR22.10-P-4340R

ENGINE 113.963 in MODEL 230.475

ENGINE 113.992 in MODEL 230.474

ENGINE 113.990 in MODEL 211.076 /276

ENGINE 113.991 in MODEL 215.374, 220.074

ENGINE 112.973 in MODEL 230.467

ENGINE 113.995 in MODEL 230.472

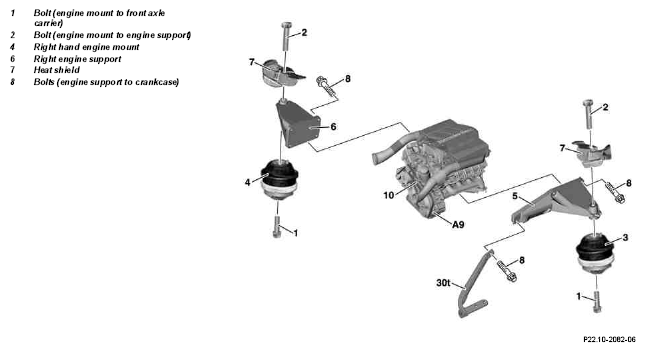

Fig 1: Identifying Right Engine Support Remove/Install Components

	Remove/install
1	Turn key in electronic ignition lock EIS into position "0".	Key cannot be withdrawn. Vehicle with Keyless Go code 889: Switch off engine, remove Keyless Go cards from the vehicle and keep outside the range of the transmitter.
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Remove ground line(s) at battery(ies)	Model 230	AR54.10-P-0003R
		Model 215, 220	AR54.10-P-0003I
		Model 211.076	AR54.10-P-0003T
		Model 211.276	AR54.10-P-0003TA
	Notes on battery		AH54.10-P-0001-01A
3	Detach right-hand engine mount (4)	See ↓ Remove/install engine mount:
		Model 215, 220, 230	AR22.10-P-1100R
		Model 211	AR22.10-P-1100PV
4	Detach right-hand engine support (6) from crankcase	Bolts must be used once only to prevent loosening. Remove right-hand engine support (6) from the front.
		Model 211, 215, 220	*BA22.10-P-1005-01L
		Model 230	*BA22.10-P-1005-01X
5	Install in the reverse order
6	Perform basic programming	Model 211	AR00.19-P-0200T
		Model 230	AR00.19-P-0200R
		Model 215, 220	AR00.19-P-0200M
7	Read out fault memory and erase	When the work is complete stored faults must be worked on in the diagnostic trouble code memories and erased. The stored faults can be caused by removed cables during installation or test operations, as well as by simulation.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 113.990 in model 211	Engine 113.991 in Model 215/220
BA22.10-P-1005-01L	Bolt connecting engine support to crankcase	Stage 1	Nm	20	20
BA22.10-P-1005-01L	Bolt connecting engine support to crankcase	Stage 2	∠ °	90	90

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 112, 113 in model 230
BA22.10-P-1005-01X	Bolt connecting engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1005-01X	Bolt connecting engine support to crankcase	Stage 2	∠ °	90

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
