Remove/install left engine support - AR22.10-P-4350R

ENGINE 113.963 in MODEL 230.475

ENGINE 113.992 in MODEL 230.474

ENGINE 113.990 in MODELS 211.076 /276

ENGINE 113.991 in MODELS 215.374, 220.074

ENGINE 112.973 in MODEL 230.467

ENGINE 113.995 in MODEL 230.472

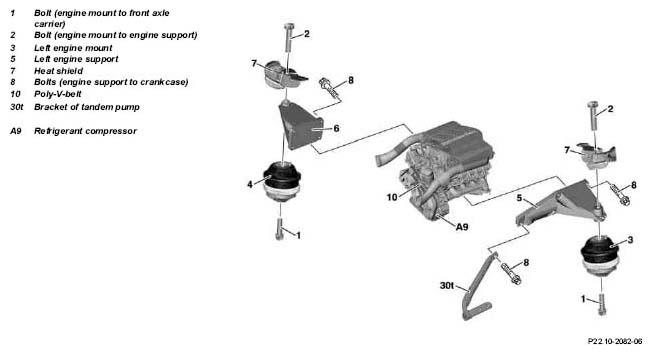

Fig 1: Identifying Left Engine Support Remove/Install Components

	Remove/install
1	Turn key in electronic ignition lock EIS into position "0".	Key cannot be withdrawn. Vehicle with Keyless Go code 889: Switch off engine, remove Keyless Go transmitter from the vehicle and keep outside the range of the transmitter.
2	Remove poly-V belt (10)	Model 215, 220, 230	AR13.22-P-1202R
		Model 211	AR13.22-P-1202RV
3	Remove left engine mount (3)	Model 215, 220, 230	AR22.10-P-1100R
		Model 211	AR22.10-P-1100PV
4	Dismount bracket (30t) of tandem pump from left engine support (5)
5	Detach the refrigerant compressor (A9) and put it on the side with the connected lines		*BA83.55-P-1001-01A
6	Detach left-hand engine support (5) from crankcase	Bolts must be used only once in order to prevent them from slackening. Take out left-hand engine support (5) backwards.
		Model 211, 215, 220	*BA22.10-P-1005-01L
		Model 230	*BA22.10-P-1005-01X
7	Install in the reverse order
8	Read out fault memory and erase	When the work is complete stored faults must be worked on in the diagnostic trouble code memories and erased. The stored faults can be caused by removed cables during installation or test operations, as well as by simulation.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 113.990 in model 211	Engine 113.991 in model 215/220
BA22.10-P-1005-01L	Bolt of engine support to crankcase	Stage 1	Nm	20	20
BA22.10-P-1005-01L	Bolt of engine support to crankcase	Stage 2	∠ °	90	90

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engines 112, 113 in model 230
BA22.10-P-1005-01X	Bolt of engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1005-01X	Bolt of engine support to crankcase	Stage 2	∠ °	90

REFRIGERANT COMPRESSOR

Number	Designation		Engine 112.973 in model 230	Engine 113.963/992/ 995 in model 230
BA83.55-P-1001-01A	Bolt, refrigerant compressor to bracket	Nm	20	20

REFRIGERANT COMPRESSOR

Number	Designation		Engine 113.987/988/98 9/990/991
BA83.55-P-1001-01A	Bolt, refrigerant compressor to bracket	Nm	20

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
