TELE AID operation - GF82.95-P-0001G
MODEL 463.249 up to 31.8.08 as of model year 2007 model year 07.5, modification year 07
MODEL 463.271 as of model year 2007 model year 07.5, modification year 07
MODEL 463.237 as of model year 2009/YoM 08
Function requirements for Telematic Alarm Identification on Demand (emergency call system) (TELE AID), general
- Circuit 30 ON
- TELE AID is authorized and operating error-free
- Each vehicle-related service is authorized separately
- An emergency call system control unit communication module authorized for the corresponding vehicle-related service is configured ex-factory with the telephone number of the corresponding service provider
- The customer is registered and authorized in the service center (Customer Assistance Center)
- One mobile phone network is available in sufficient strength and quality
TELE AID system, general
The emergency call system control unit enables the following vehicle-related services to be realized:
- Authorization (Provisioning)
- TELE AID emergency call, manual or automatic, incl. emergency police assistance number "911"
- MB-Info call
- Breakdown assistance (Roadside Assistance)
- Vehicle tracking
- Vehicle remote door unlock
The emergency call system control unit is not used for regular telephone calls.
Self-test
After activation of the status circuit 15R ON, the emergency call system control unit performs a self-test (approx. t = 3.5 s). After a successful self-test, the TELE AID system is operational.
In the event of a fault or if authorization has not been provided, a fault message is displayed in the instrument cluster depending on the fault type and the two red light emitting diodes in the SOS push button are also permanently actuated. Depending on the fault type, the fault is also stored in the emergency call system control unit's memory.
The TELE AID system consists of the following subfunctions, which are described in separate documents:
- Voice connection to vehicle, function
- Display of TELE AID status, function
- Selecting telephone antenna, function
- Position finding, function
- Emergency call, function
- Vehicle tracking, function
- Breakdown assistance, function
- MB information, function
- Vehicle remote door unlock, function
Prioritizing of supplementary information:
All listed vehicle-related services run automatically in the emergency call system control unit. The emergency call system control unit has a priority management feature to ensure that it does not have to manage several vehicle-related services at the same time. This determines the point at which a vehicle-related service is to be activated and which vehicle-related service has a higher priority. Depending on which vehicle-related service is to be activated, the emergency call system control unit releases resources in accordance with the priority list and activates the vehicle-related service or refuses activation because a vehicle-related service with a higher priority is already active. The highest priority is given to the completion of an automatic TELE AID emergency call.
| Priority | Service |
|---|---|
| 1 | Automatic TELE AID emergency call |
| 2 | Manual TELE AID emergency call |
| 3 | Vehicle tracking |
| 4 | Breakdown assistance (telediagnosis) |
| 5 | MB-Info call (info call) |
| 6 | Vehicle remote door unlock |
| TELE AID position of the components | GF82.95-P-0001-01GC | ||

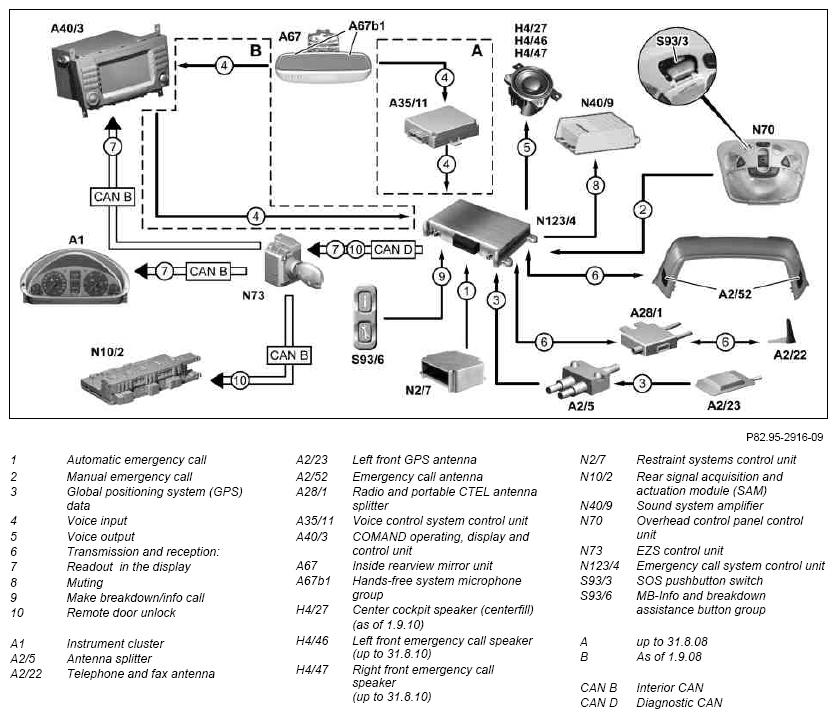

| TELE AID block diagram | GF82.95-P-0001-02G | ||
