TELE AID position of the components - GF82.95-P-0001-01GC

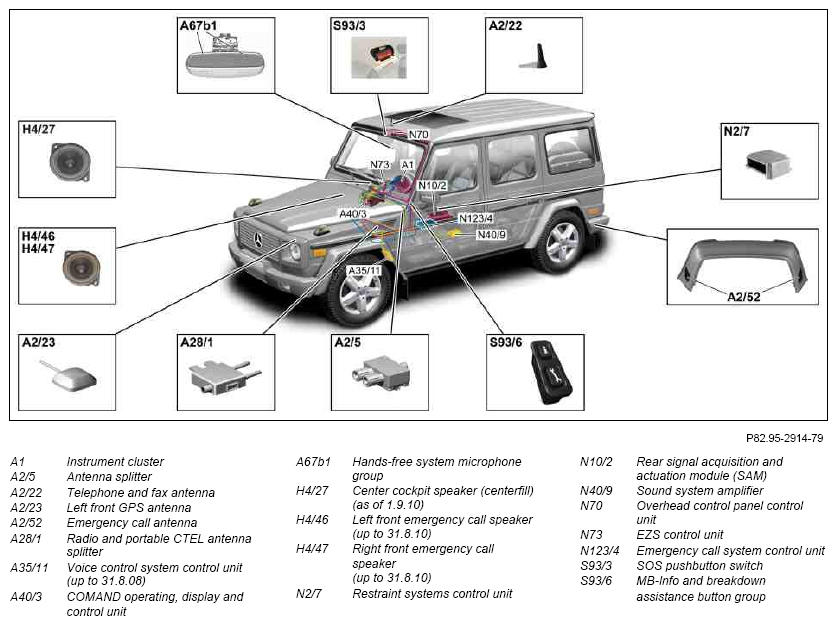

Fig 1: Locating TELE AID Components

G07705824

Courtesy of MERCEDES-BENZ USA
