Remove/install hands-free system microphone - AR82.70-P-8969Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209.3 with CODE (853) MB standard cellular telephone

MODEL 209.3 with CODE (854) MB portable cellular telephone

MODEL 209.3 with CODE (855) TELE AID

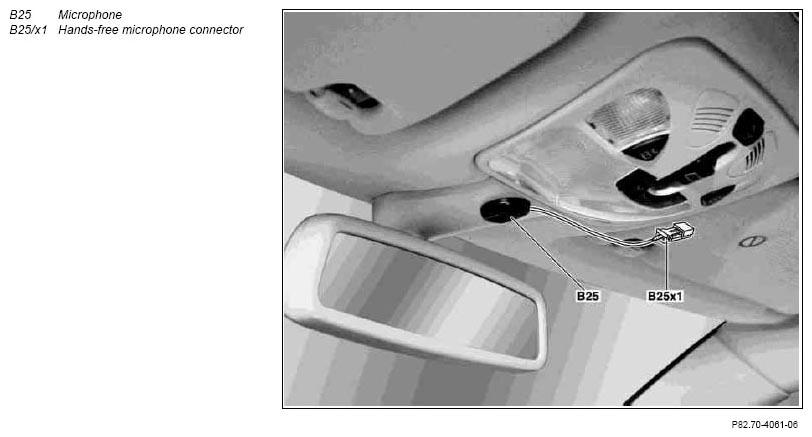

Fig 1: Identifying Hands-Free Microphone Connector And Microphone

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove overhead control panel control module	Only unplug hands-free system microphone connector (B25/x1).	AR82.20-P-1000Q
2	Remove inside rearview mirror		AR68.40-P-0001Q
3	Unclip microphone (B25)
4	Install in the reverse order
