Removing and installing module box - AR54.20-P-2360Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209
Shown on model 209.3

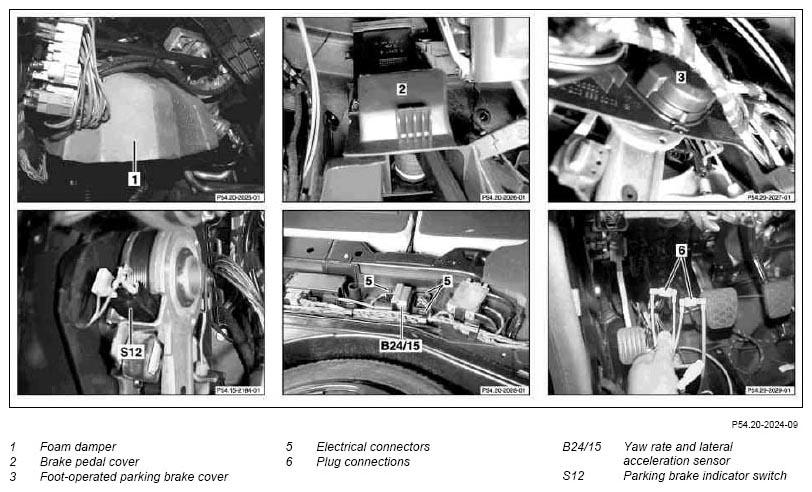

Fig 3: Identifying Foot-Operated Parking Brake Cover, Parking Brake Indicator Switch And Related Components
MODIFICATION NOTES
| 20.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | |||
| 1 | Remove wiper system | AR82.30-P-6400P | |
| 2 | Remove air intake grille on engine hood | ||
| 3 | Remove obstructions hindering access to electrical lines for windshield washer nozzles and sun sensor as far as module box (4) | ||

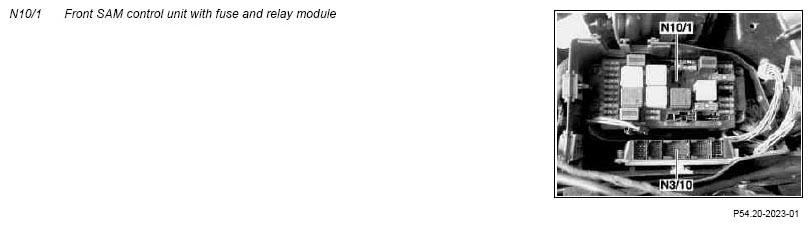

| 4 | Remove front SAM control unit with fuse and relay module (N10/1) | AR54.21-P-1260P | |
| 5 | Remove driver side front seat | AR91.10-P-1000Q | |
| 6 | Remove cover below left of instrument panel | AR68.10-P-1500P | |
| 7 | Remove bottom section of dashboard on driver's side | AR68.10-P-1505Q | |
| 8 | Take out foam damper (1) | ||
| 9 | Remove brake pedal cover (2) | ||
| 10 | Remove cover of foot-operated parking brake (3) | ||
| 11 | Remove accelerator pedal | AR30.12-P-1321P | |
| 12 | Remove left front floor covering | AR68.20-P-2050P | |
| 13 | Detach electrical lines for accelerator pedal from vehicle floor and pull back to module box (4) | ||
| 14 | Unplug electrical connectors at parking brake indicator switch (S12) | ||
| 15 | Remove side trim in left side of rear compartment | Model 209.3 | AR68.30-P-4780Q |
| 16 | Remove paneling in luggage compartment | Model 209.3 | AR68.30-P-4600PB |
| 17 | Disconnect electrical connectors (5) | ||
| 18 | Detach electrical lines to yaw rate and lateral acceleration sensor (B24/15) from vehicle floor and pull back as far as module box (4) | ||
| 19 | Disconnect plug connectors in left front inner door sill | ||
| 20 | Disconnect plug connectors in left rear inner door sill | ||
| 21 | Detach electrical lines from vehicle floor and pull back as far as module box (4) | ||
| 22.1 | Disconnect plug connectors (6) for pneumatic headlamp range adjustment in left front inner door sill | Only on vehicles without Code (614) bi-xenon headlamp unit |
|
| 23 | Release pneumatic lines from vehicle floor and pull back as far as module box (4) | ||
| 24 | Take off separable cable ducts from module box (4) | ||
| 25 | Unscrew nut from ground (left inner door sill) (W28/1) | ||
| 26 | Take off electric cables | ||
| 27 | Pull back remaining cable harnesses to module box (4) | ||

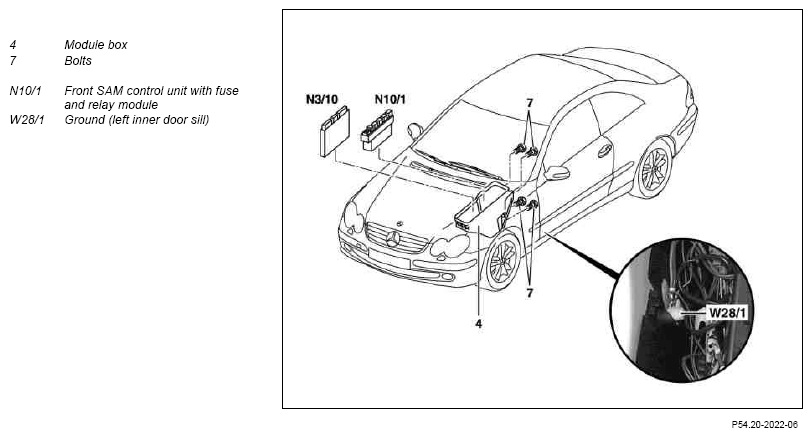

| 28 | Unscrew bolts (7) and remove module box (4) | ||
| 29 | Install in the reverse order | ||
| 30 | Connect STAR DIAGNOSIS, read out and erase fault memory | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| Diagnosis system STAR DIAGNOSIS | *WH58.30-Z-1048-13A | ||
| 31 | Perform function check |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
