Remove/install front seat - AR91.10-P-1000Q
WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 209

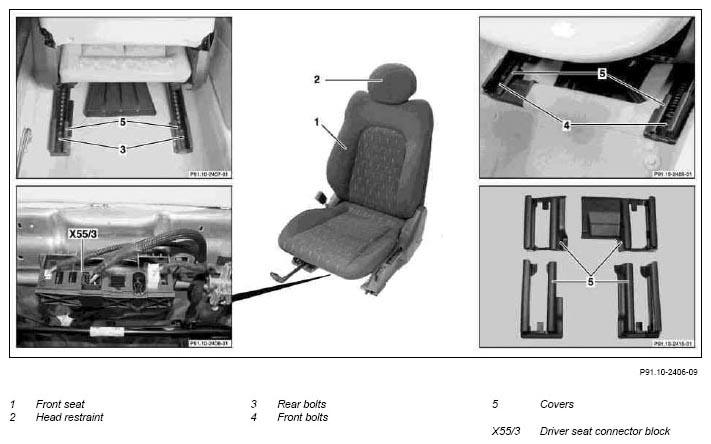

Shown on left front seat (1)

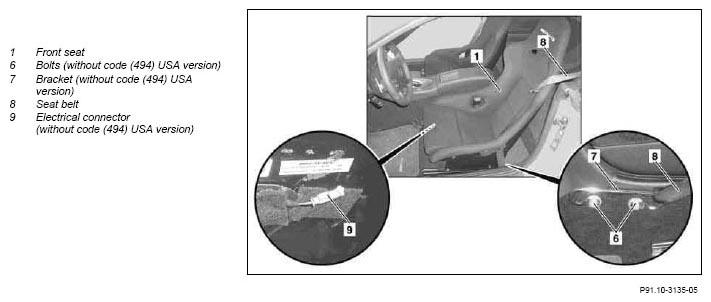

Left front seat (1) with code (P98) Black Series
MODIFICATION NOTES
| 23.5.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units | AH91.00-P-0002-01M | ||
| Notes on seat occupied recognition | As of 1.6.04 with code (494) USA version, front passenger seat | AH91.60-P-0760-01P | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Assessment of airbag and emergency tensioning retractor units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Move left and right head restraint (2) down | On vehicles without code (P98) Black Series | |
| 2 | Move steering wheel all the way up and to the front | When removing driver seat. | |
| 3 | Move left and right front seat (1) toward the front | ||
| 4 | Remove rear bolts (3) from seat rails | *BA91.10-P-1001-01A | |
| 5 | Remove bracket (7) and unthread seat belt (8) from front seat (1) | On vehicles with code (P98) Black Series and without code (494) USA version | |
| *BA91.40-P-1001-01A | |||
| 6 | Position front seat (1) to rear | ||
| 7 | Remove fire extinguisher | When removing driver seat on vehicles with code (682) Fire extinguisher and without code (P98) Black Series. | |
| 8 | Remove front bolts (4) from seat rails | *BA91.10-P-1001-01A | |
| 9 | Unclip and remove covers (5) at front and rear | ||
| 10.1 | Disconnect electrical connectors from driver seat connector block (X55/3) or front passenger seat connector block | On vehicles without code (P98) Black Series or on vehicles with code (494) USA version and code (P98) Black Series | |
| 10.2 | Disconnect electrical connector (9) on underside of seat | On vehicles with code (P98) Black Series and without code (494) USA version | |
| 11 | Remove front seat (1) | ||
| 12 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 209 | |
|---|---|---|---|
| BA91.10-P-1001-01A | Bolt to seat runner | Nm | 50 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 209.3 | |
|---|---|---|---|
| BA91.40-P-1001-01A | Screw on belt end fitting | Nm | 30 |
