Transmitter key, task/design/function - GF80.57-P-4101PP

MODEL 203.0/ 2/ 7

Shown on model 203.2/7 with code (763) Radio remote control with panic switch

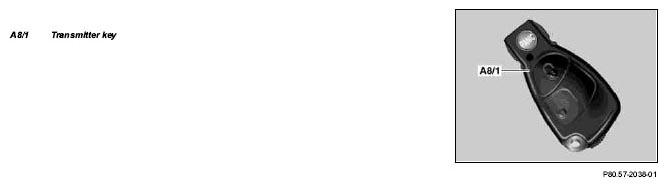

Fig 1: Identifying Transmitter Key
G04735421
  Transmitter key, purpose
  • Remote control for central locking (CL)
  • Transmit drive authorization data
  • Convenience feature (CF)
  • Trigger panic alarm (with code (763) Radio remote control with panic switch)

  Transmitter key, design   GF80.57-P-4101-01PP
  Transmitter key, function   GF80.57-P-4101-02PP
