Remove/install seat occupied recognition sensor - AR91.60-P-0720M

MODEL 215, 220.0 /1 up to 31.8.02

Shown on model 215

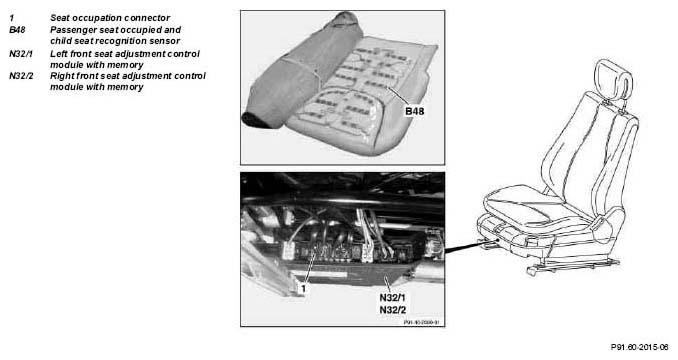

Fig 1: Identifying Seat Occupied Recognition Sensor Remove/Install Components - Shown On Model 215

Shown on Model 220

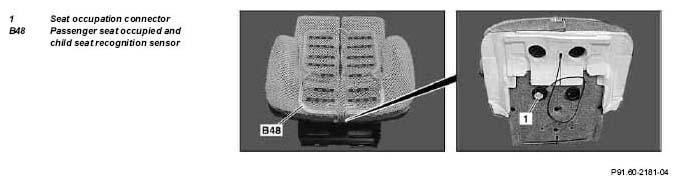

Fig 2: Identifying Seat Occupied Recognition Sensor Remove/Install Components - Shown On Model 220

	Remove/install
	Important instructions for performing repair, body work and welding on vehicles with airbags or belt tensioner units	Model 203, 209, 211.004/ 006/ 016/ 061/ 065/ 070, 215, 220, 230, 240, 450.3/4. Model 463.244 /245 /247 /248 /249 /250 /254 /309 /322 /323 /332 /333.	AH91.00-P-0002-01M
1	Remove cover of front seat cushion	On passenger-side only.
		MODEL 215.	AR91.18-P-1800N
		Model 220.	AR91.18-P-1800M
2.1	Switch off ignition, withdraw ignition key
2.2	Switch off engine, remove transmitter key from vehicle	With keyless go code 889. Keep transmitter key outside the transmitter range
3	Guide the connector (1) upwards out of the rubberized fiber matting
4	Remove the front passenger seat occupied and child seat recognition sensor (B48) from the rubberized fiber matting	Installation:  Lay the front passenger seat occupied and child seat recognition sensor (B48) evenly on the rubberized fiber matting. The woven side must face upwards. Do not kink front passenger seat occupied and child seat recognition sensor (B48).
5	Install in the reverse order
6	Carry out diagnosis	STAR DIAGNOSIS
