Remove/install front seat cushion covering - AR91.18-P-1800M

MODELS 220.0 /1 up to 31.8.02

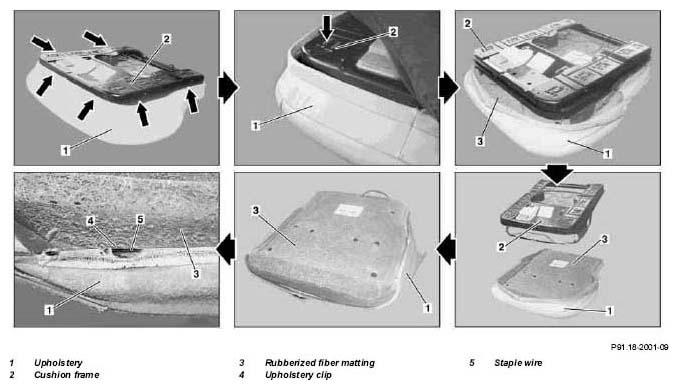

Fig 1: Identifying Front Seat Cushion Covering Remove/Install Components - Models 220.0 /1 Up To 31.8.02 (1 Of 2)

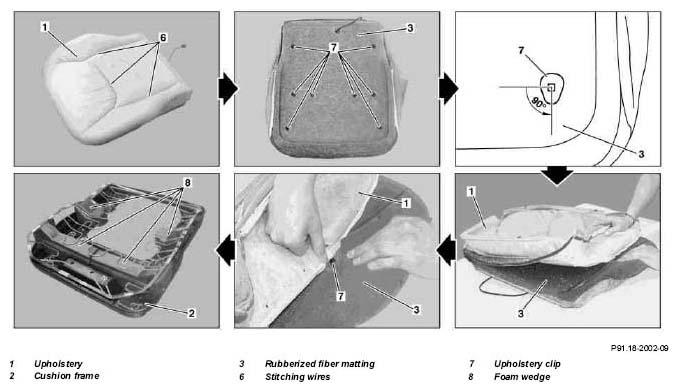

Fig 2: Identifying Front Seat Cushion Covering Remove/Install Components - Models 220.0 /1 Up To 31.8.02 (2 Of 2)

	Remove
1	Remove driver's seat cushion	Place driver's seat cushion on suitable surface with upholstery (1) facing downwards.	AR91.10-P-1070M
2	Unclip upholstery all way round (1) from clip groove (arrows) in cushion frame (2)	Relieve strain on upholstery (1) by pushing down the cushion frame.
3	Remove cushion frame (2) from the rubberized fiber matting (3)
4	Remove side upholstery clips (4) from stitching wires (5)	Pull upholstery (1) over outer edge of rubberized fiber matting (3).
5	Remove upholstery clips (7, 8 pcs.) from stitching wires (6)	Do this by rotating upholstery clips (7) 90° using flat nose pliers.
6	Remove upholstery (1) from rubberized fiber matting (3)
7.1	Pull stitching wires (5, 6) from upholstery (1)	Only when replacing upholstery (1).
	Install
8.1	Slide stitching wires (5) and (6) into material sleeves on upholstery (1) and straighten out	Only when fitting new upholstery (1).
9	Press in upholstery clips (7, 8 pcs.) into rear of rubberized fiber matting (3) and straighten out
10	Fold upholstery (1) to side, place on rubberized fiber matting (3) and straighten out
11	Use press-in tool to insert stitching wires (6) into upholstery clips (7)
	Installation tool for stitching wire		WF58.50-P-9118-02A
12	Insert lateral stapling clips (4) into stitching wires (5)	Pull upholstery (1) over outer edge of rubberized fiber matting (3) at side and front.
13	Insert cushion frame (2) into rubberized fiber matting (3).	With foam rubber wedges (8, 4 pcs.) inserted into cushion frame (2).
14	Insert upholstery (1) all way round into clip groove,	Relieve strain on upholstery (1) by pushing down the cushion frame. Note retaining clamps.
15	Install driver's seat cushion		AR91.10-P-1070M
